Specifications

• Weight: 1079kg
• Tow rating: 2400kg
• Interior dimensions: 2300mm high x 1750mm wide x 3495mm long
• Exterior dimensions: 2815mm high x 2320mm wide x 4640mm long
• Horse bay dimensions: 875mm wide x 170cm to 185cm long (adjustable)

Standard features ...

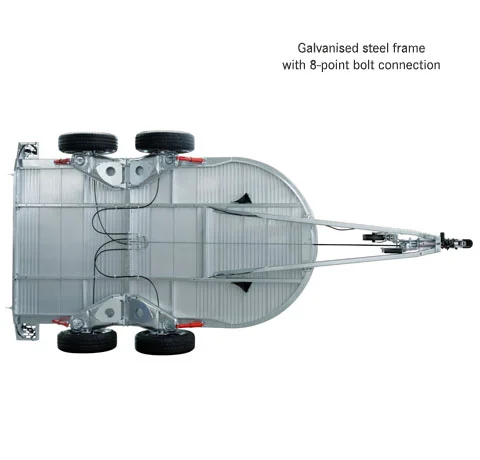

• Fully galvanised steel frame designed for heavy loads (galvanised steel frame with 8-point bolt connection to the longitudinal beam construction)
• Boeckmann class-leading WCF® chassis (independent 4-wheel sprung suspension)
• Superb German four-wheel mechanical braking system featuring auto reverse

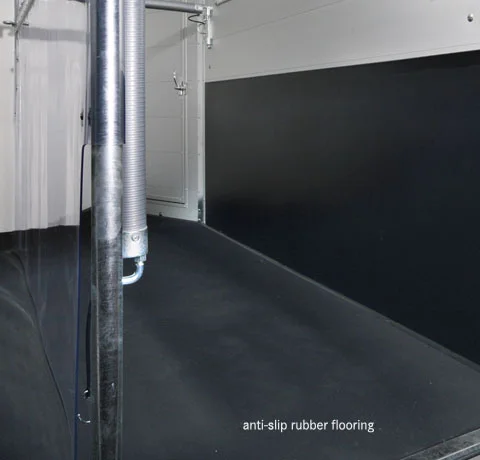

• Aluminium floor covered with anti-slip rubber flooring (fully glued and sealed)

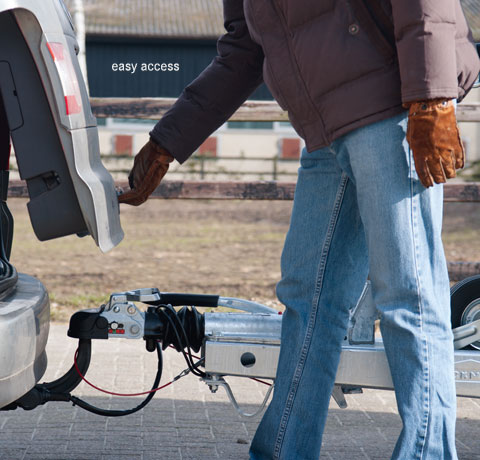

• Cast lockable Knott coupling (fits 50mm ball size)

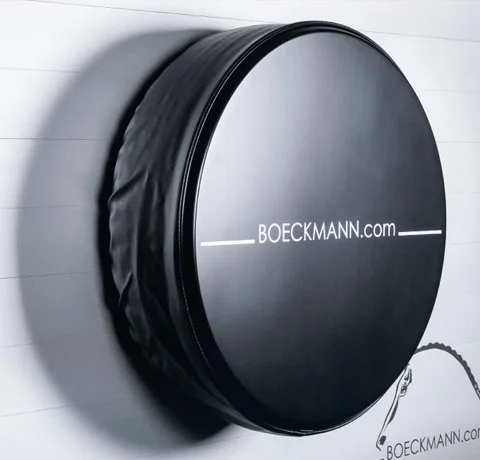

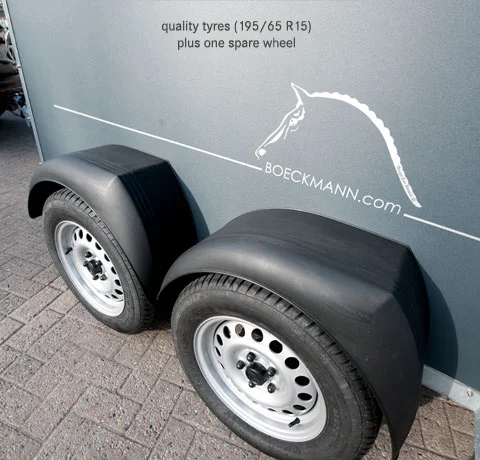

• 15" heavy-duty commercial steel wheels and tyres plus spare wheel
• Double web profile anodised aluminium side walls (2100mm high)
• Aerodynamic fibreglass bow and roof available in different colours
• 2 large tinted perspex sliding windows

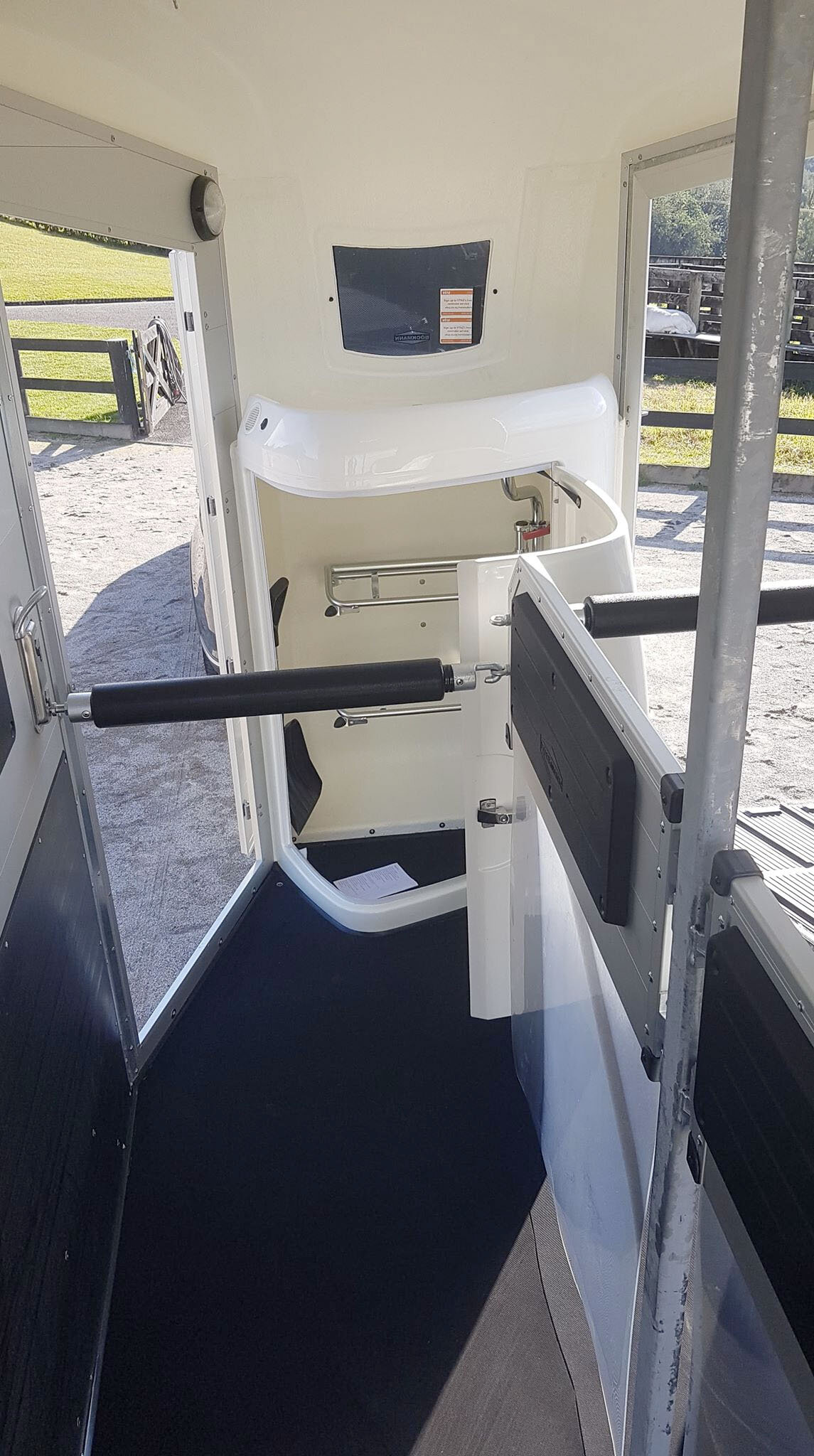

• Panoramic front window
• Air vent in fibreglass roof

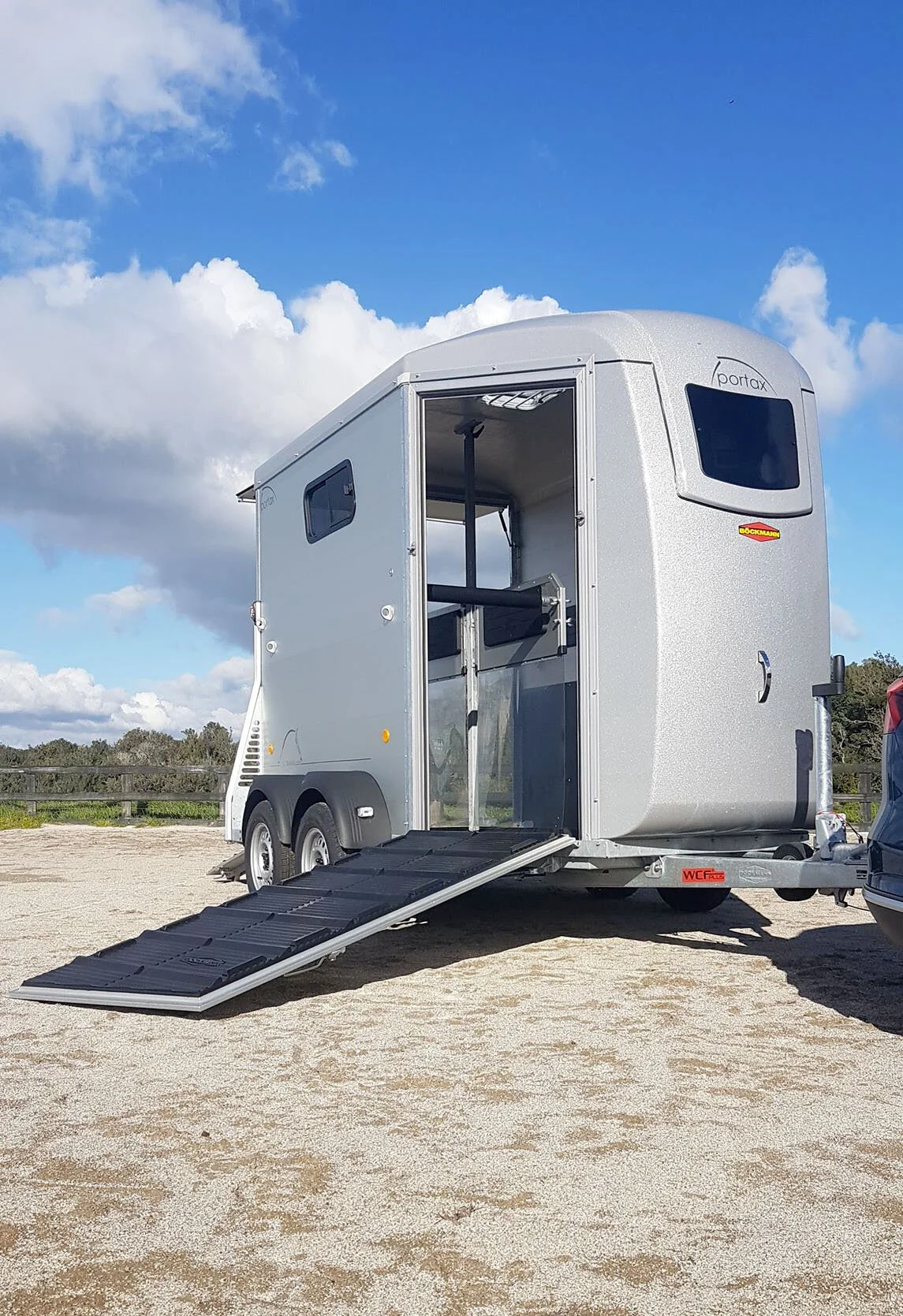

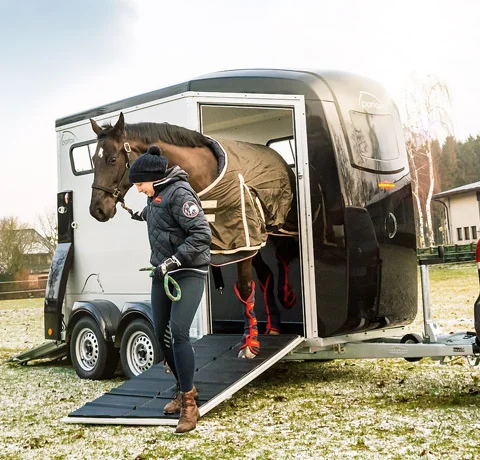

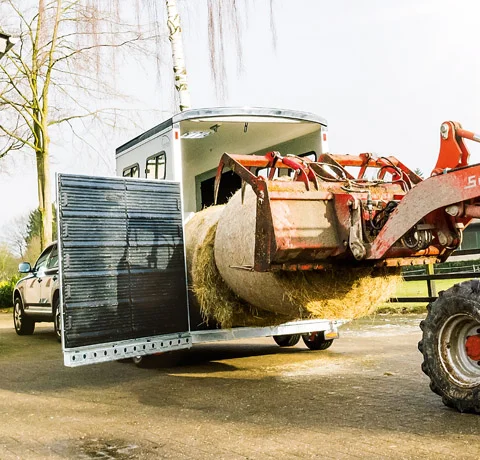

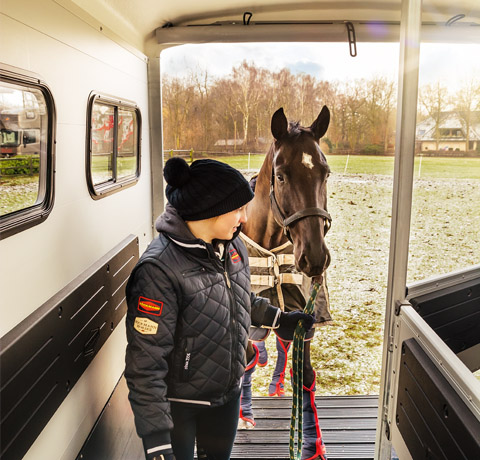

• Wide and extra long front unloading ramp
• Two full height access doors

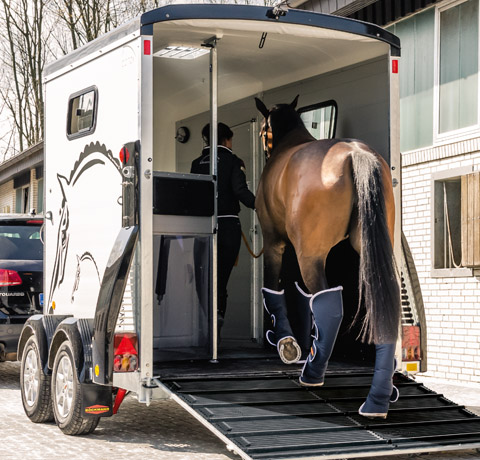

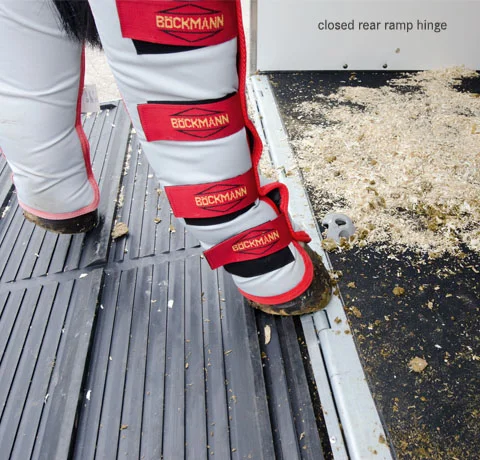

• Rear ramp / door combination

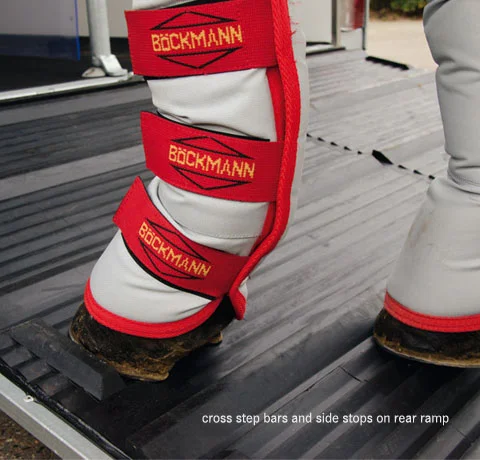

• Ramp with gas shocks and non-slip rubber safety mat with treads and side stops

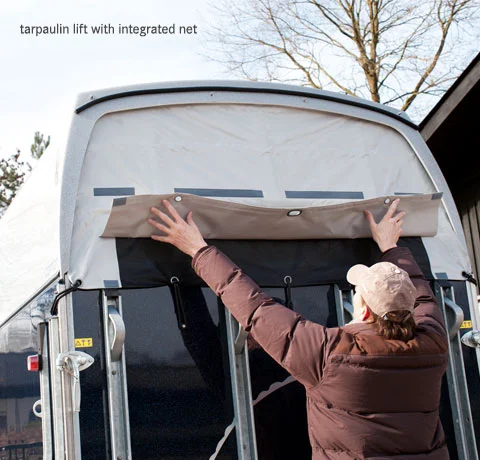

• Tarpaulin flap with integrated net above ramp (auto-lift)

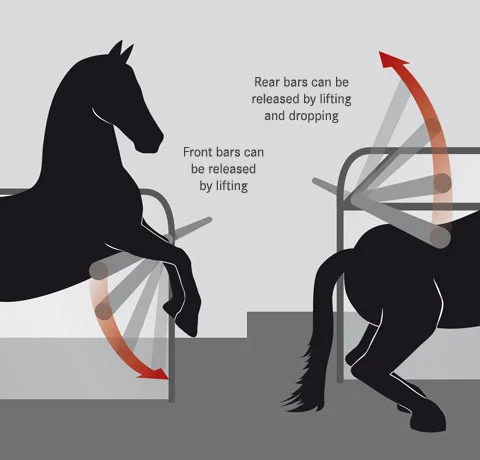

• Boeckmann height & length adjustable, external rapid release safety stall bars (MSS)

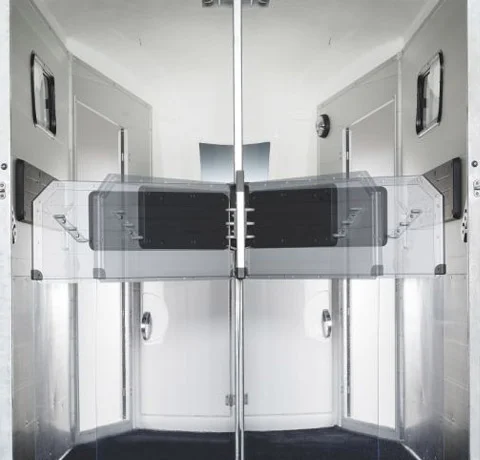

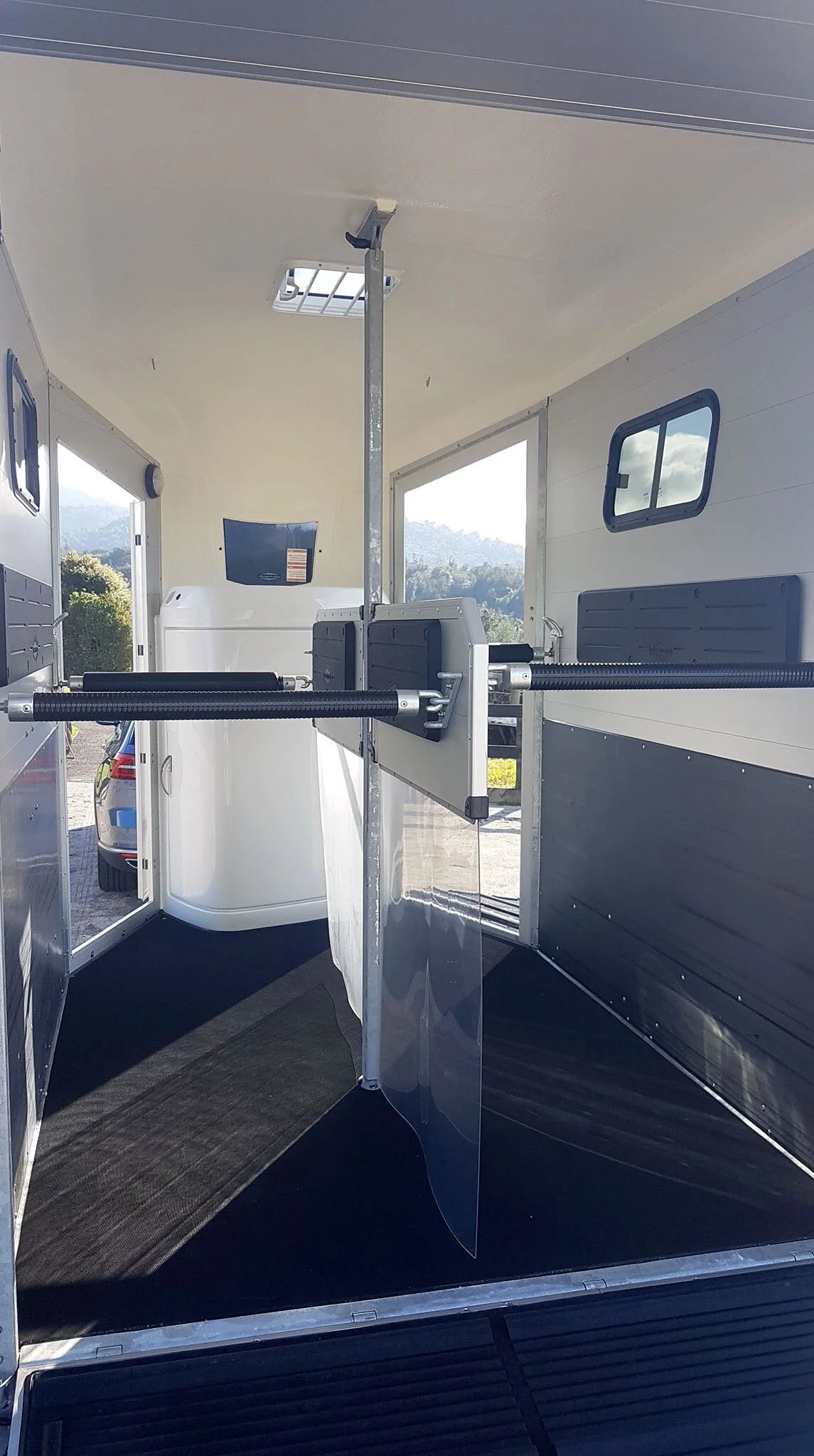

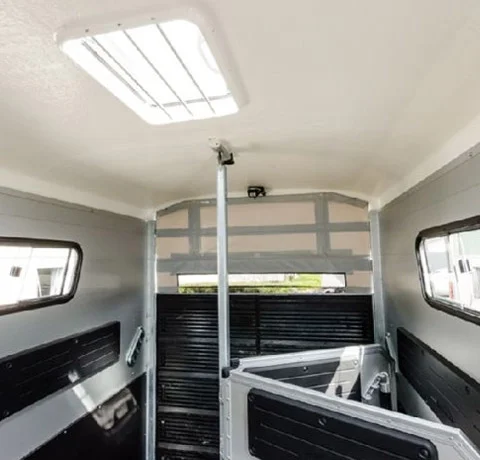

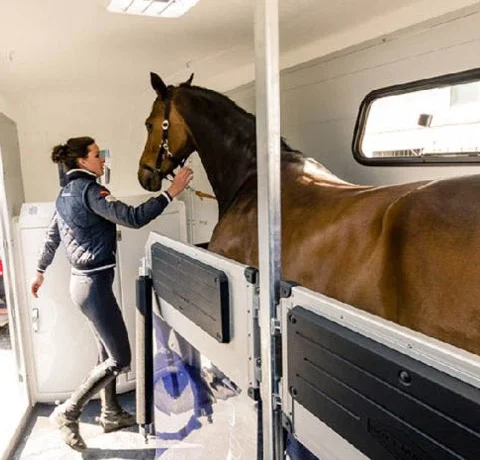

• Swivelling and fully removable centre partition with central post avaiable in different heights (standard 165cm)
• Durable High Density Polyethylene internal side kick protection

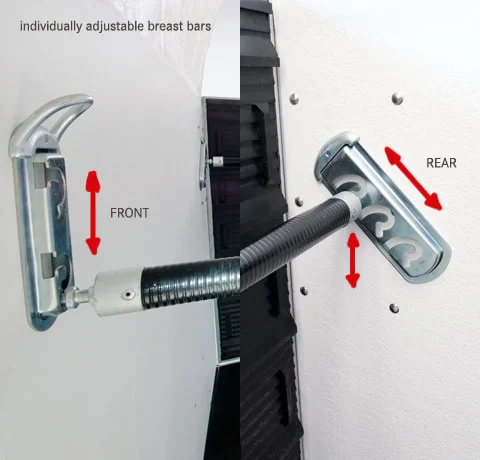

• Padded sides and chest bars

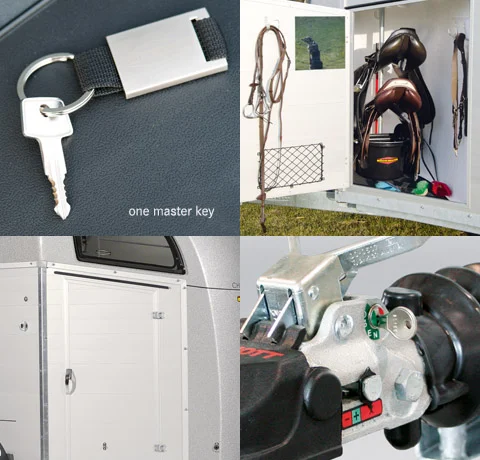

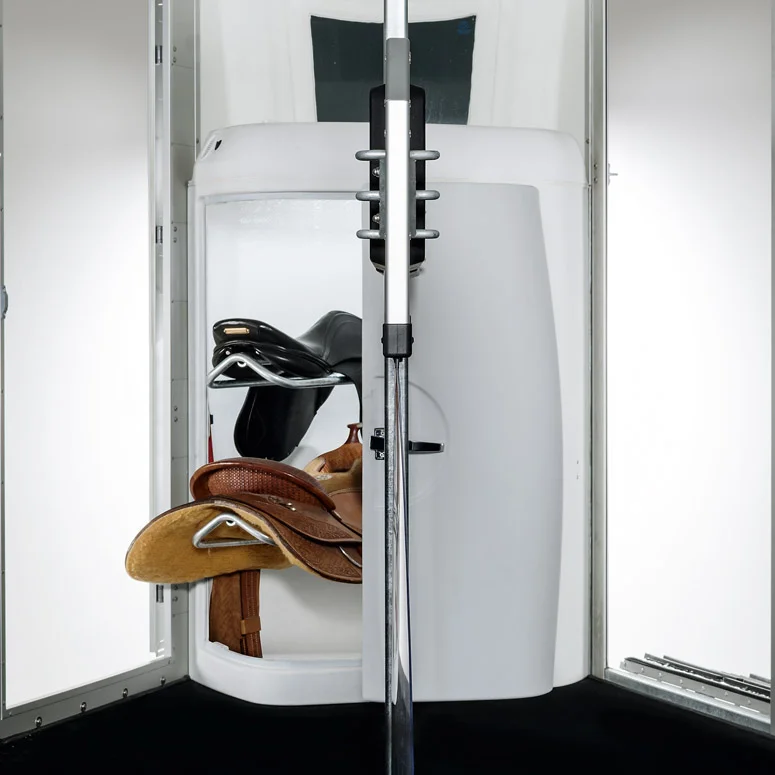

• Lockable airtight and fully sealed tack room with extendable saddle racks, bridle hooks, mirror, shovel & brush, interior lighting - self draining and well ventilated
• Interior lighting
• Comprehensive 2 year warranty

Colour options

Anthracite black metallic, silver metallic, white, dark blue metallic, red metallic, green metallic, flame red, yellow, royal blue, magenta, yellow-green, deep-orange and any custom colour or decor.

Body, roof, fender and brace colours can be mixed in any colour combination.

Optional extras

• Anti-skid coupling (up to 2,7 t total weight)

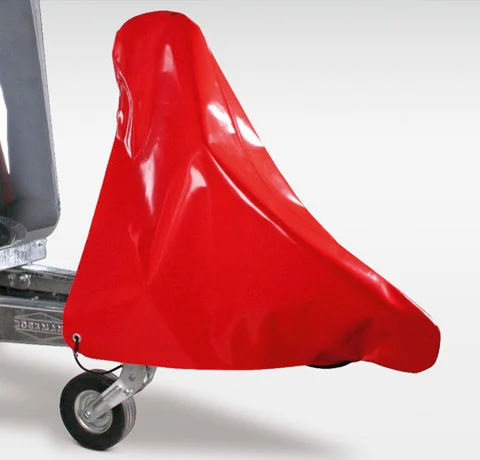

• Weather-proof protective cover for coupling and jockey wheel
• Alloy rims

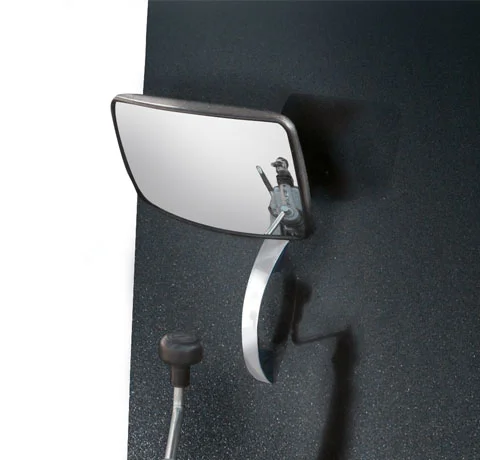

• Rear view mirror for coupling procedure

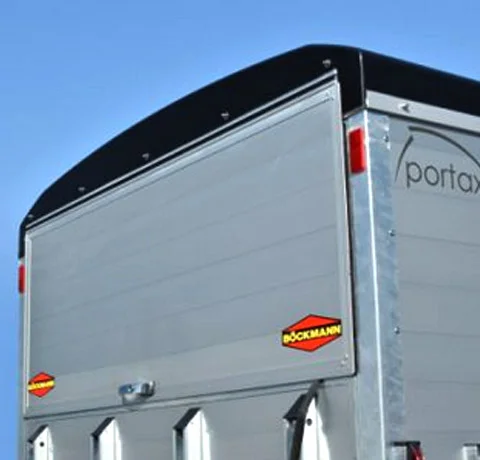

• Lockable aluminium flap above rear ramp

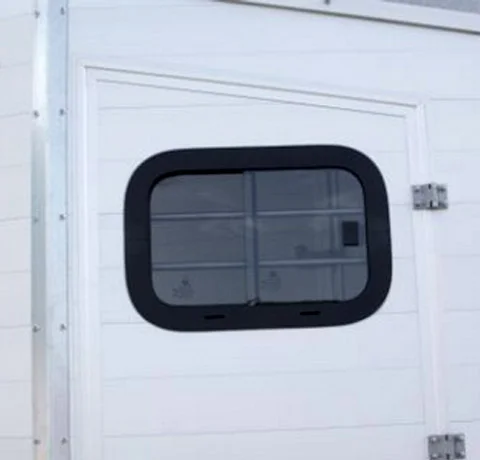

• Additional tinted sliding window in door

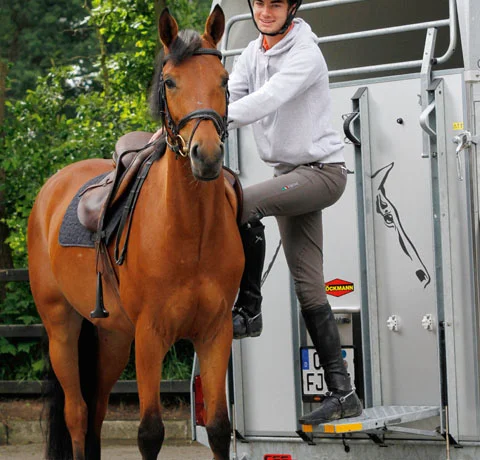

• Climbing aid (foldable mounting block)
• Third brake light at rear ramp

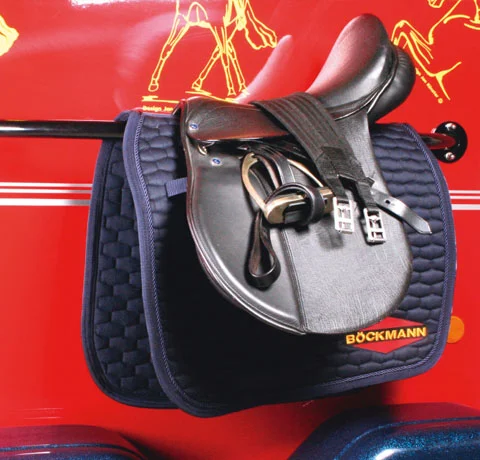

• Exterior storage bar for saddle and saddle blanket
• Additional roof vent for extra ventilation
• Additional wear mat in front leg area for extra durability
• Feeding trough with holder and carry handle
• Full width chest and butt bars
• Additional interior lighting at ear

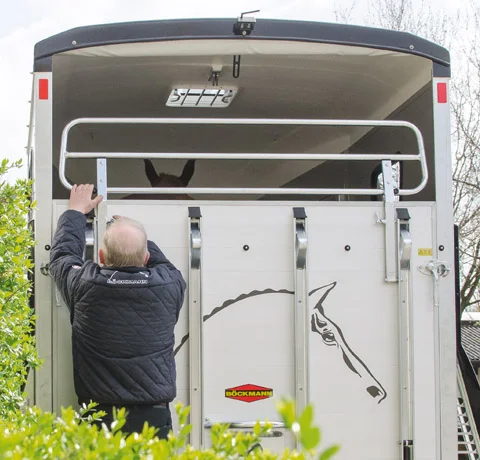

• Foldable foal gates

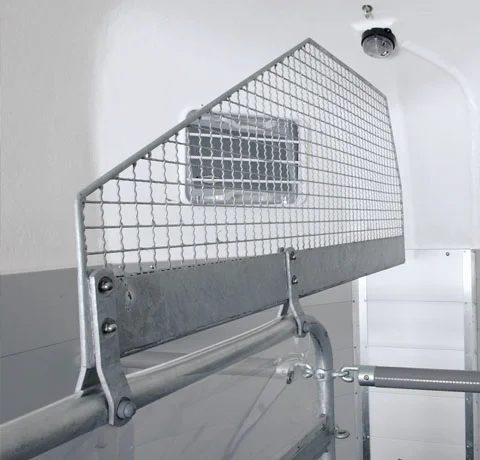

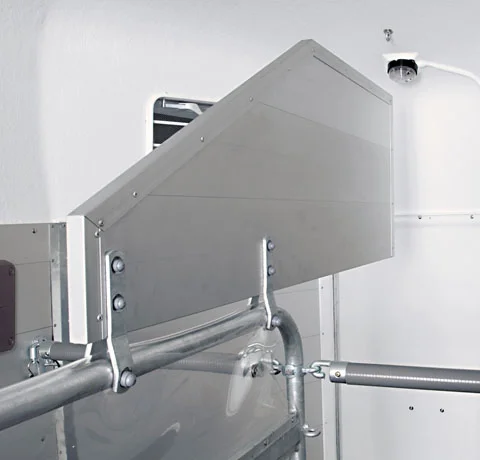

• Head divider / stallion guard
• Wireless video monitoring device (2 cameras)
• Decor motif on each side wall (small or large)

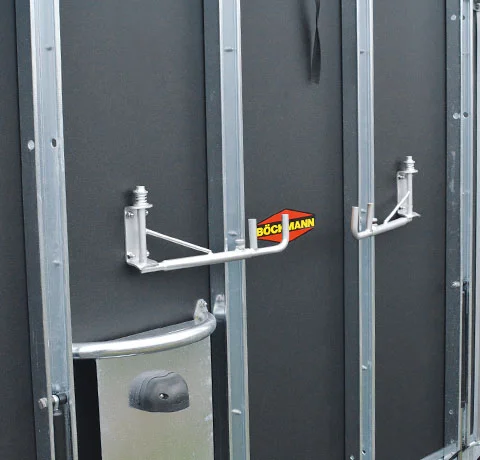

• Sulky holder on rear ramp

Boeckmann decors

Enhance the appearance of your Boeckmann horse float with a small or large decor designed by Jan Kuenster. Decors are available in silver, black or multicoloured. On request we will be happy to create decors and decor sizes to your specifications.
