MASTER

NZ$34,950.00

Elegant design with generous dimensions in a full fibreglass finish - packed with features the MASTER model has an aerodynamic shape with generous room for two horses up to 17hh and plenty of room for storage in the built-in tack room. Class-leading suspension, superb braking and great towing characteristics make this float a genuine Masterpiece.

$34,950 incl. GST

Add to Wishlist

Specifications

  • Weight: 1084kg

  • Tow rating: 2400kg

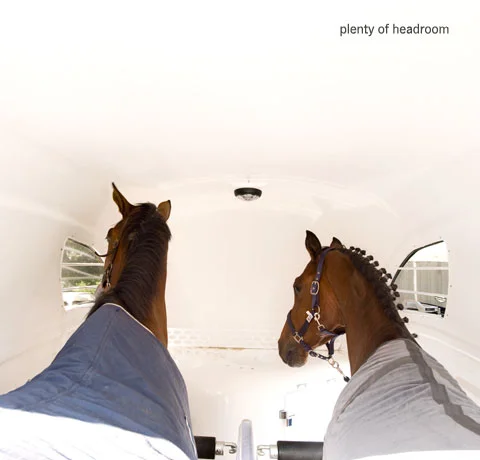

  • Interior dimensions: 2350mm high x 1650mm wide x 3560mm long

  • Exterior dimensions: 2770mm high x 2215mm wide x 4710mm long

  • Horse bay dimensions: 825mm wide x 170cm to 185cm long (adjustable)

Standard features ...

  • Fully galvanised steel frame designed for heavy loads (galvanised steel frame with 8-point bolt connection to the longitudinal beam construction)

  • Boeckmann class-leading WCFÂŽ chassis (independent 4-wheel sprung suspension)

  • Superb german four-wheel mechanical braking system featuring auto reverse

  • Cast lockable Knott coupling (fits 50mm ball size)

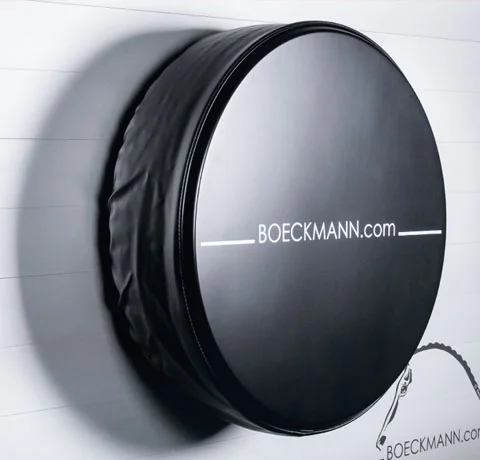

  • 15" heavy-duty commercial steel wheels and tyres plus spare wheel

  • Impact resistant composite mudguards

  • Aerodynamic fibreglass structure available in different colours

  • Aluminium floor covered with anti-slip rubber flooring (fully glued and sealed)

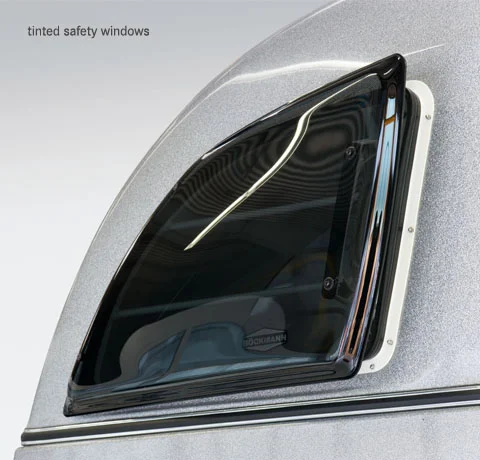

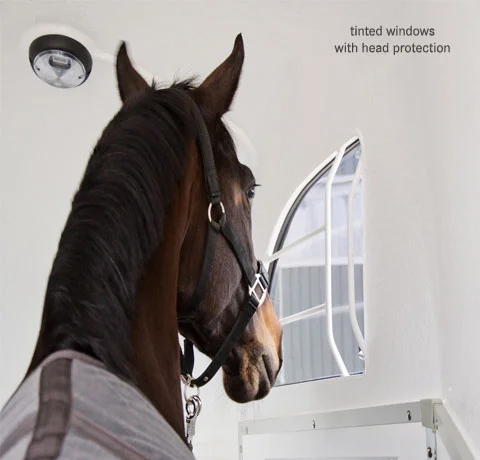

  • 2 large tinted and dazzle-free perspex opening windows

  • Ramp with gas shocks and non-slip rubber safety mat with treads and side stops

  • Tarpaulin flap with integrated net above ramp (auto-lift)

  • Boeckmann height & length adjustable, external rapid release safety stall bars (MSS)

  • Swiveable and fully removable centre partition avaiable in different heights (standard 165cm)

  • Durable High Density Polyethylene internal side kick protection

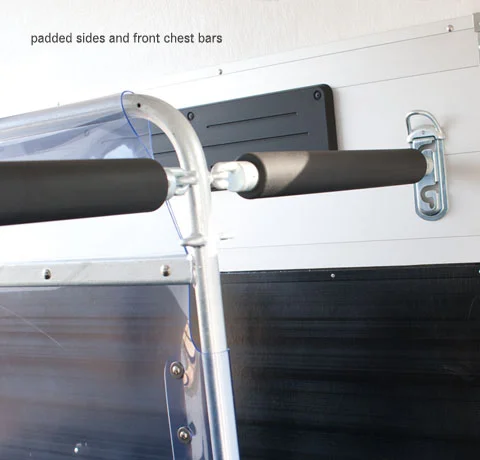

  • Padded sides and chest bars

  • Additional wear mat in front leg area for extra durability

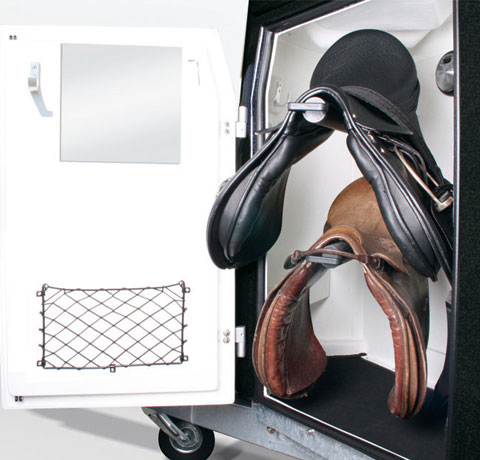

  • Lockable airtight and fully sealed tack room with extendable saddle racks, bridle hooks, mirror, shovel & brush, interior lighting - self draining and well ventilated

  • Interior lighting

  • Comprehensive 2 year warranty plus 20 years warranty on the aluminium floor

Colour options

Anthracite black metallic, silver metallic, white, dark blue metallic, red metallic, green metallic, flame red, yellow, royal blue, magenta, yellow-green, deep-orange and any custom colour or decor.

Body, roof, fender and brace colours can be mixed in any colour combination.

Optional extras

  • Anti-skid coupling (up to 2,7 t total weight)

  • Weather-proof protective cover for coupling and jockey wheel

  • Mudguards in fibreglass finish

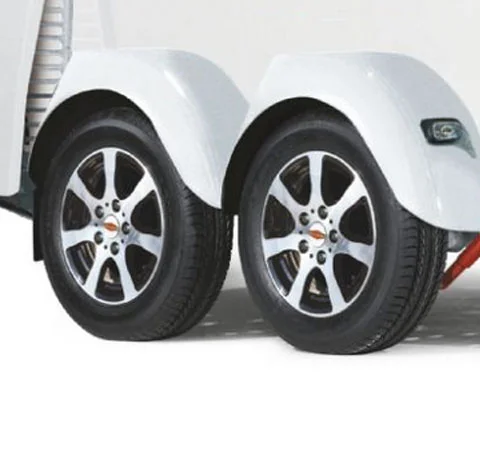

  • Alloy rims

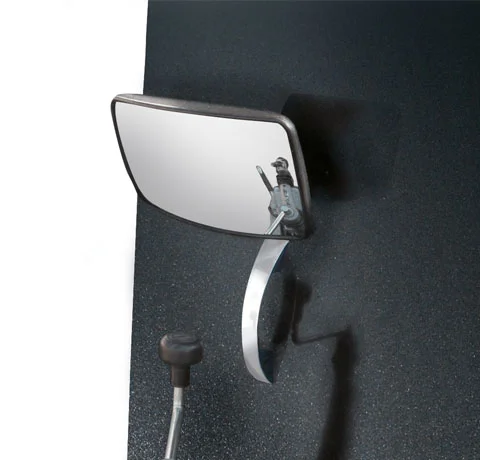

  • Rear view mirror for coupling procedure

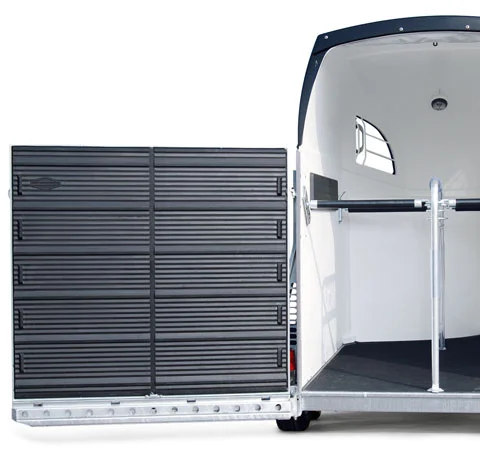

  • Rear ramp / door combination

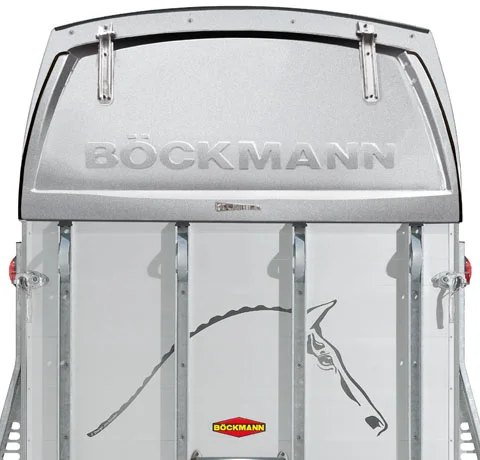

  • Lockable fibreglass flap above rear ramp

  • Climbing aid (foldable mounting block)

  • Third brake light at rear ramp

  • Exterior storage bar for saddle and saddle blanket

  • Roof vents for extra ventilation

  • Full width chest and butt bars

  • Additional interior lighting at rear

  • Foldable foal gates

  • Feeding trough with holder and carry handle

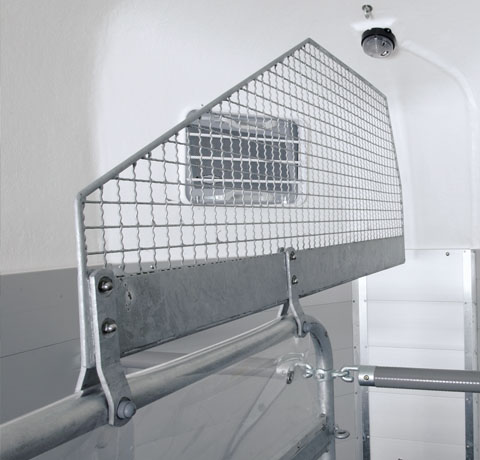

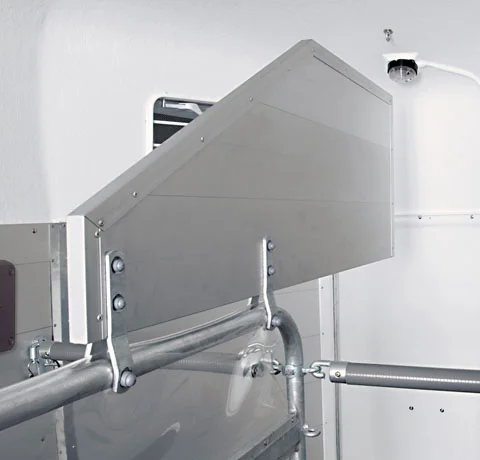

  • Head divider / stallion guard

  • Wireless video monitoring device (2 cameras)

  • Decor motif on each side wall (small or large)

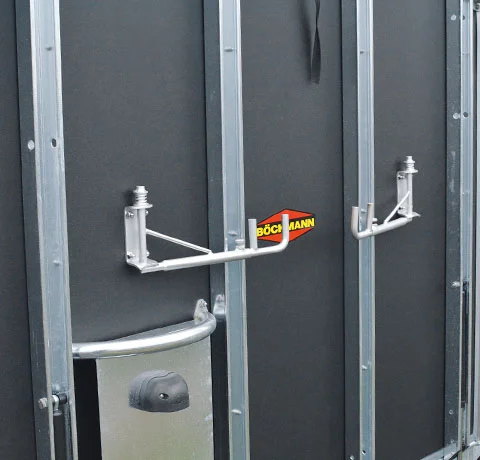

  • Sulky holder on rear ramp

Boeckmann decors

Enhance the appearance of your Boeckmann horse float with a small or large decor designed by Jan Kuenster. Decors are available in silver, black or multicoloured. On request we will be happy to create decors and decor sizes to your specifications.
