3-way tipping trailer DK-AL 4121/35
3-way tipping trailer DK-AL 4121/35
Boeckmann 3-way tipping trailer DK-AL 4121/35
In stock NOW
Base price: $19,975 (+GST and on-road costs)
Technical specifications…
GVM: 3,500kg (tare weight: 1,220kg, payload: 2,280kg)
Internal dimensions (mm): L: 4,140, W: 2,100, H: 350
Loading height: 820mm
3-year domestic warranty (1-year commercial)
General specifications…
MADE IN GERMANY
3-way tipper with non-interchangeable locking pins
Welded hot-dipped galvanised steel chassis

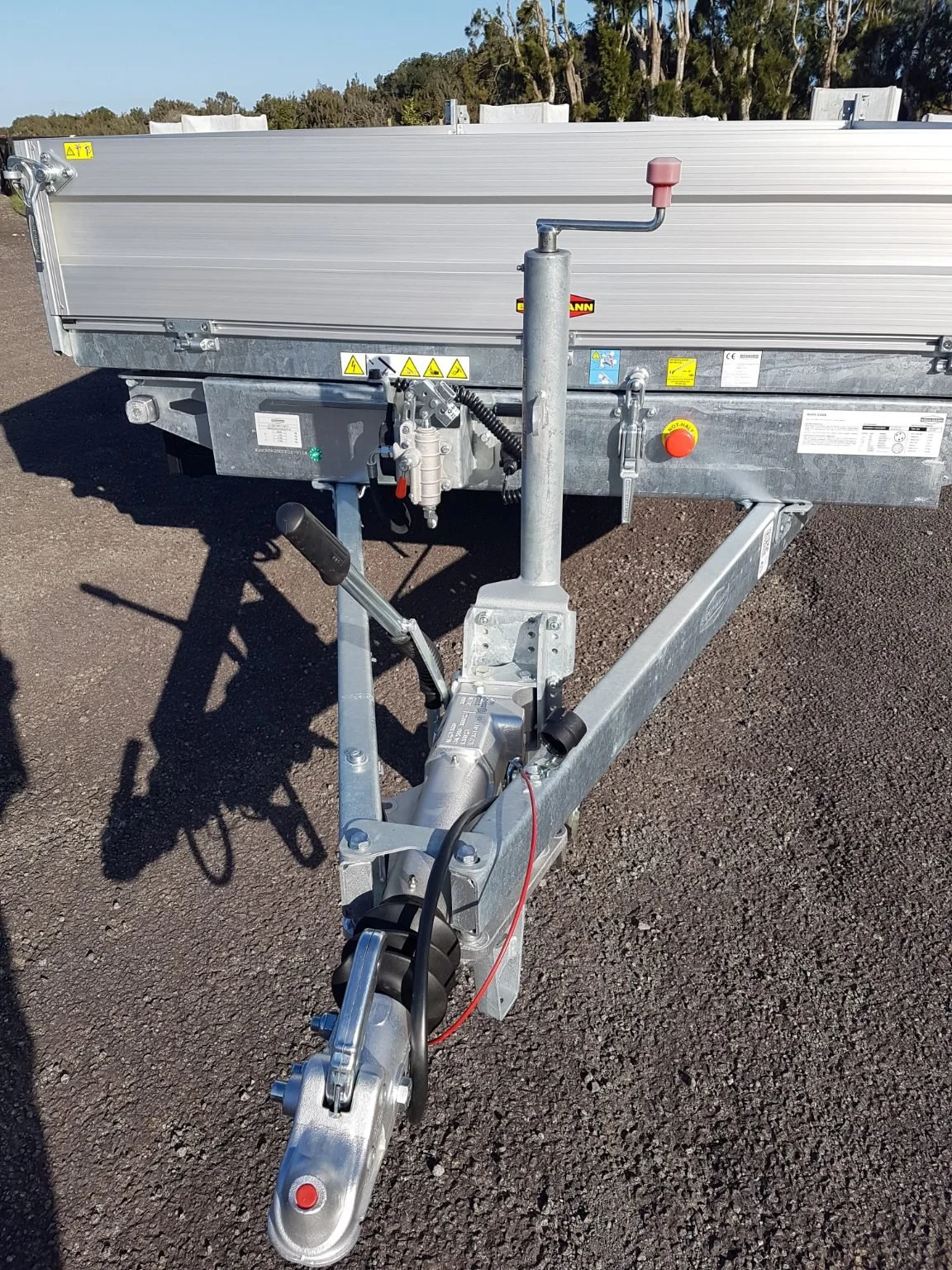

Bolted V-drawbar
Double walled anodised aluminium sidewalls (350mm), foldable and removable
Swinging rear flap

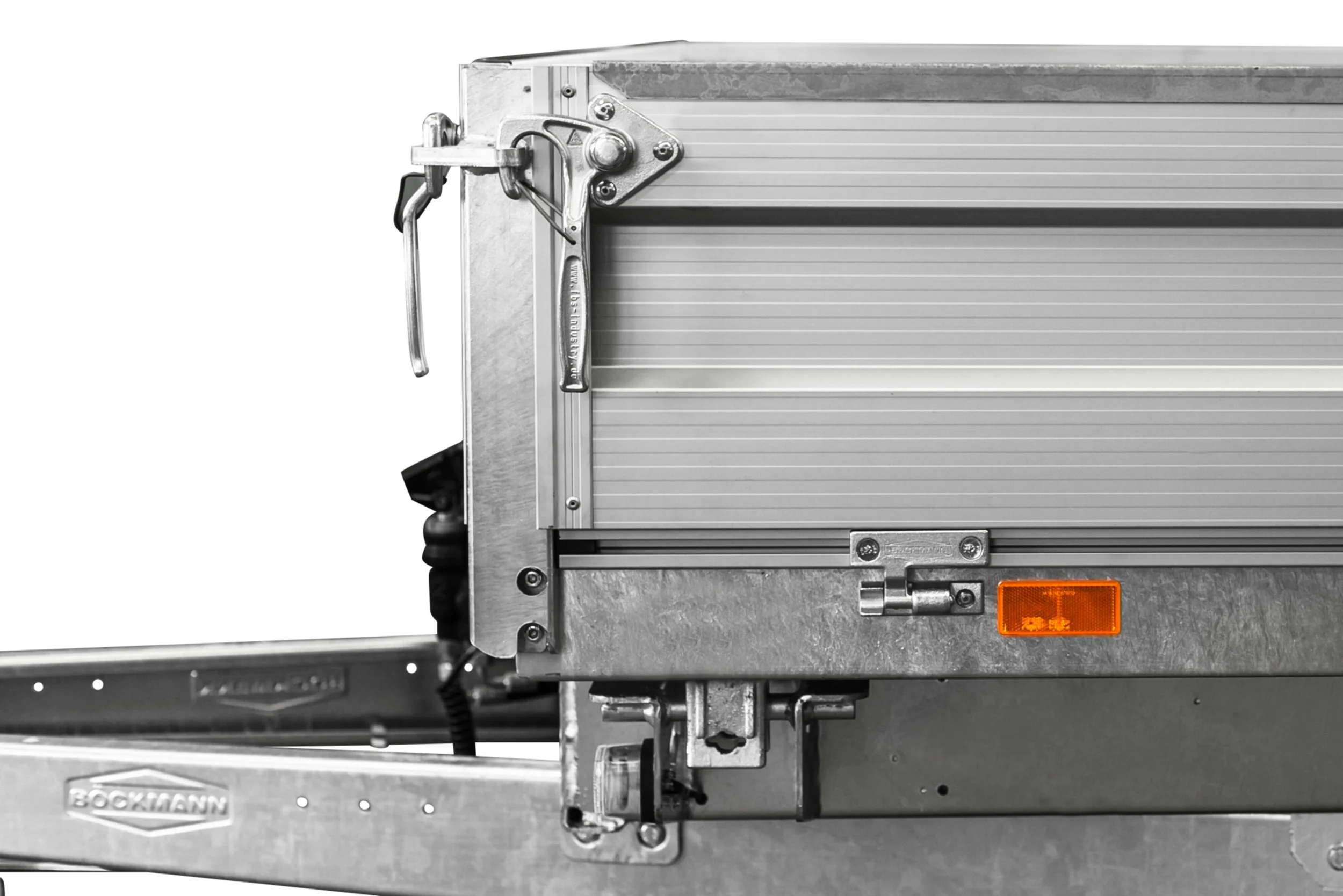

Angle lever locks
Steel corner rungs with removable solid hooks
Maintenance-free rubber axle with independent wheel suspension

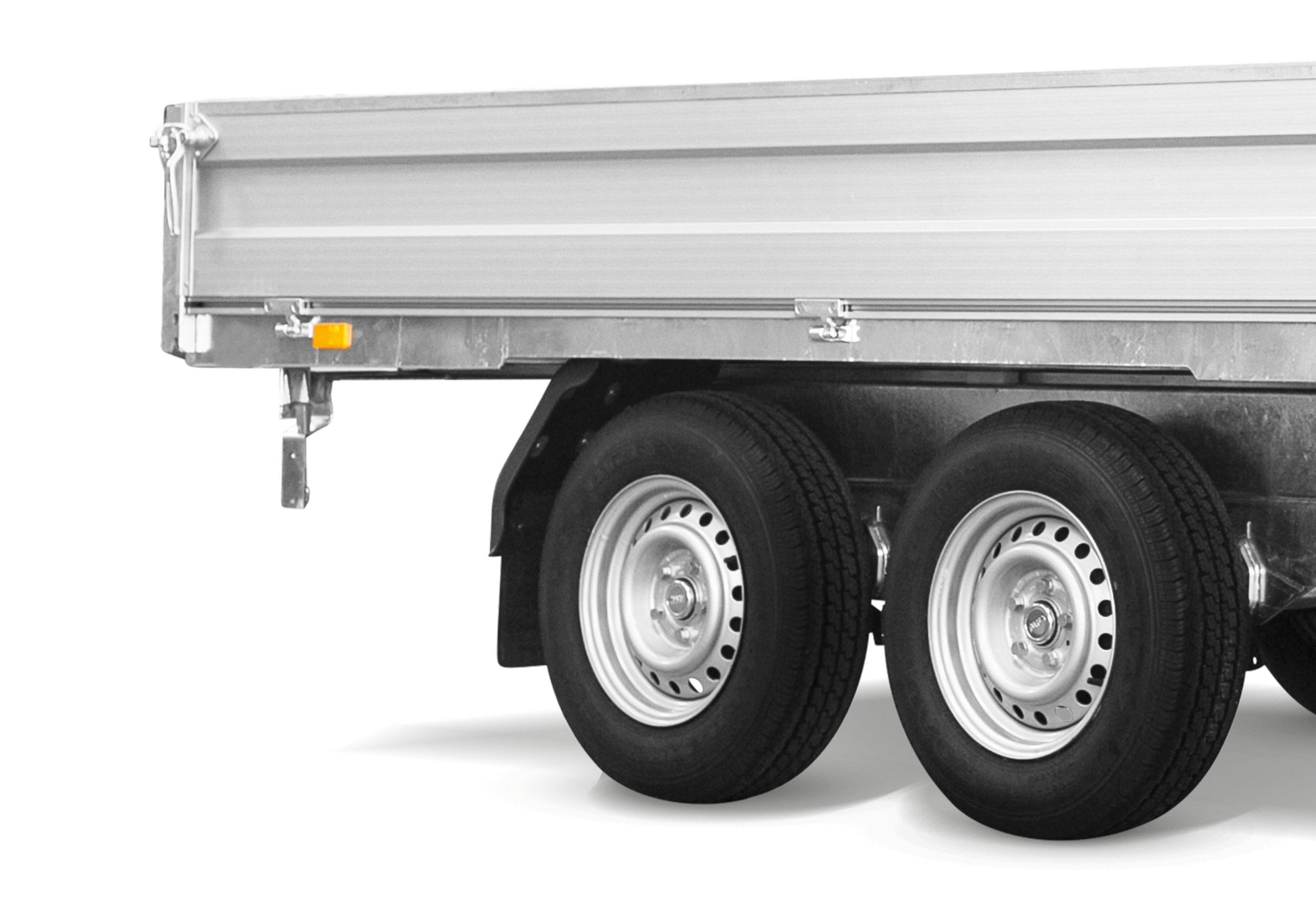

Twin axle with 14-inch wheels and commercial tyres

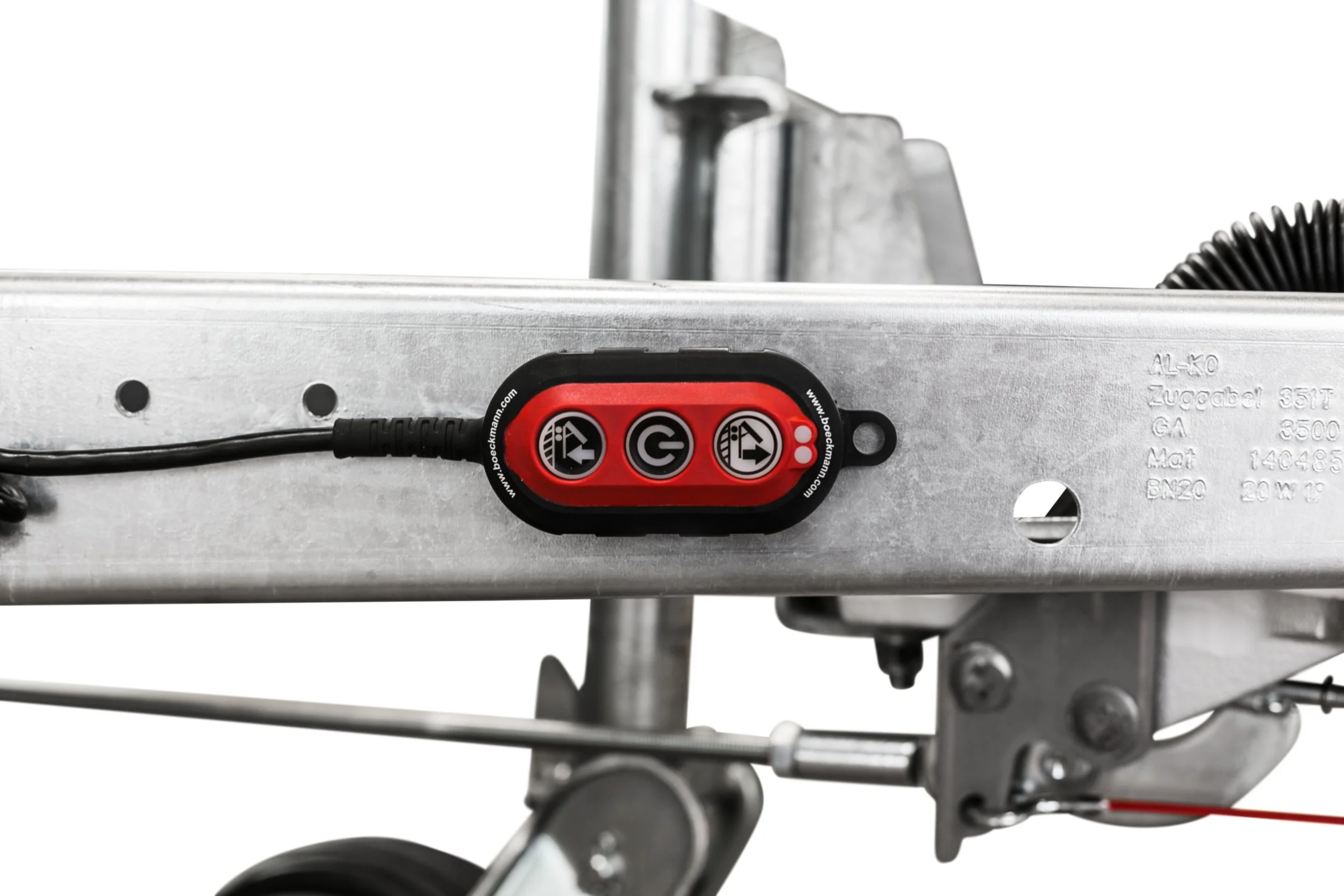

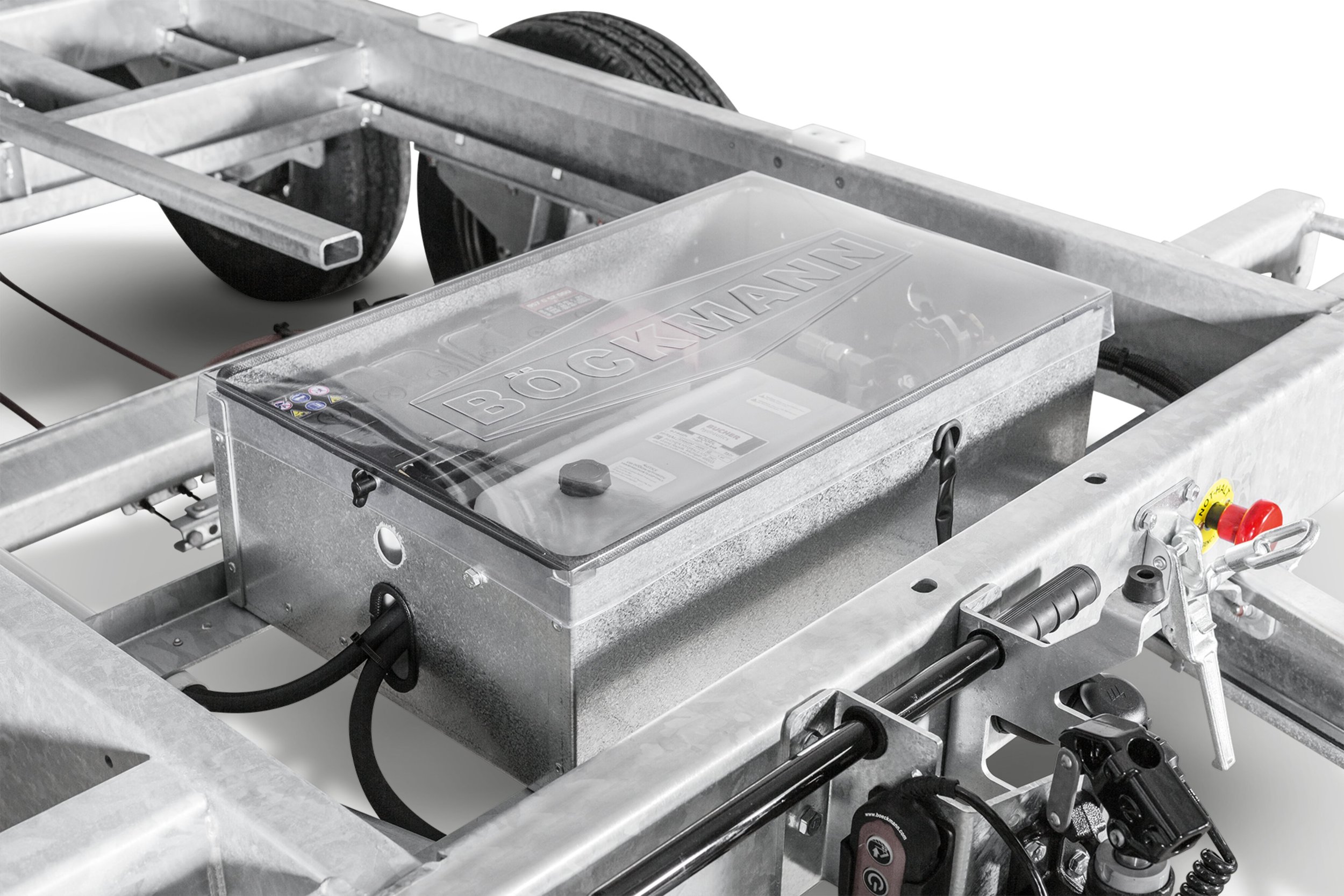

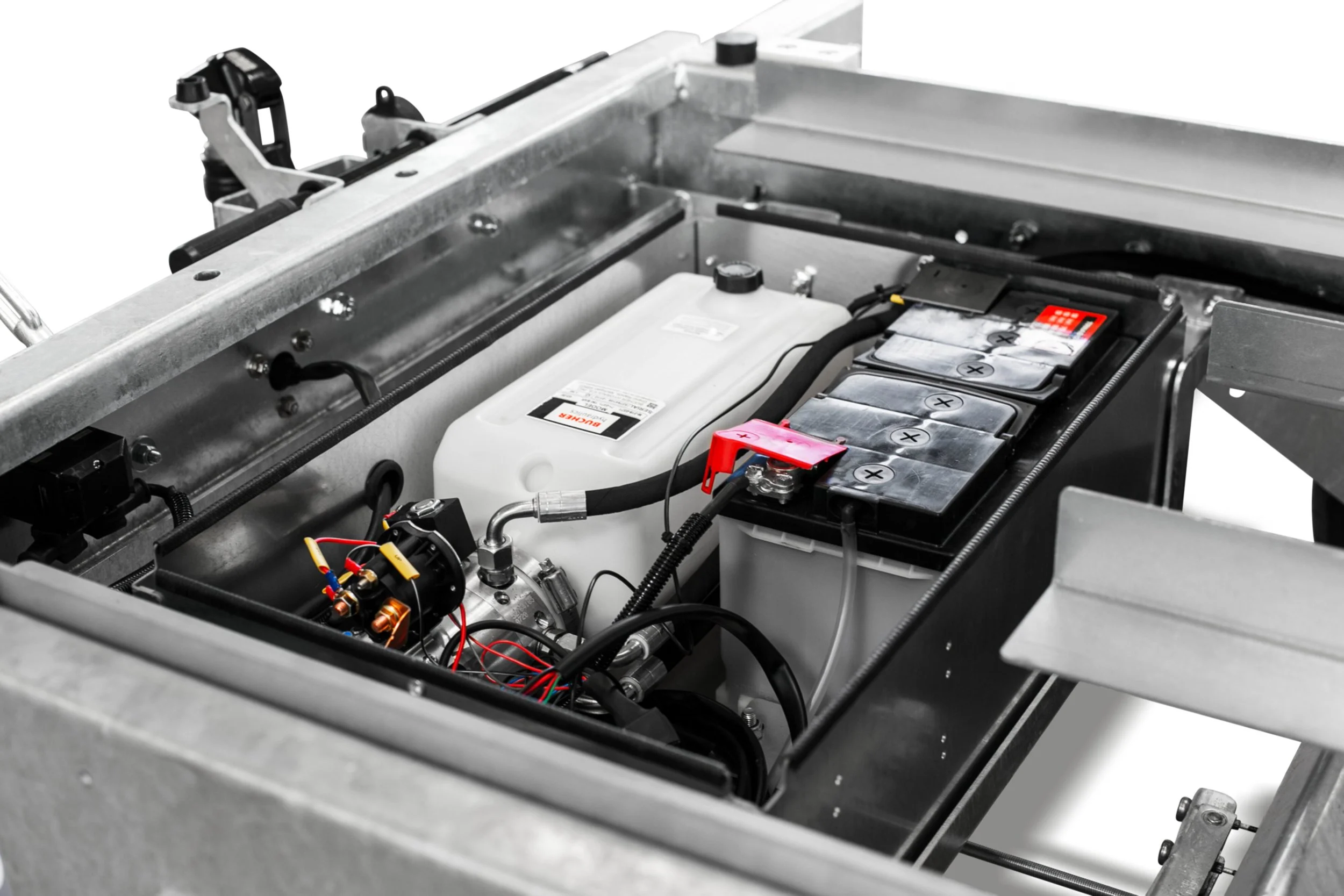

Electro-hydraulic pump with battery (12V/95Ah) and emergency hand pump

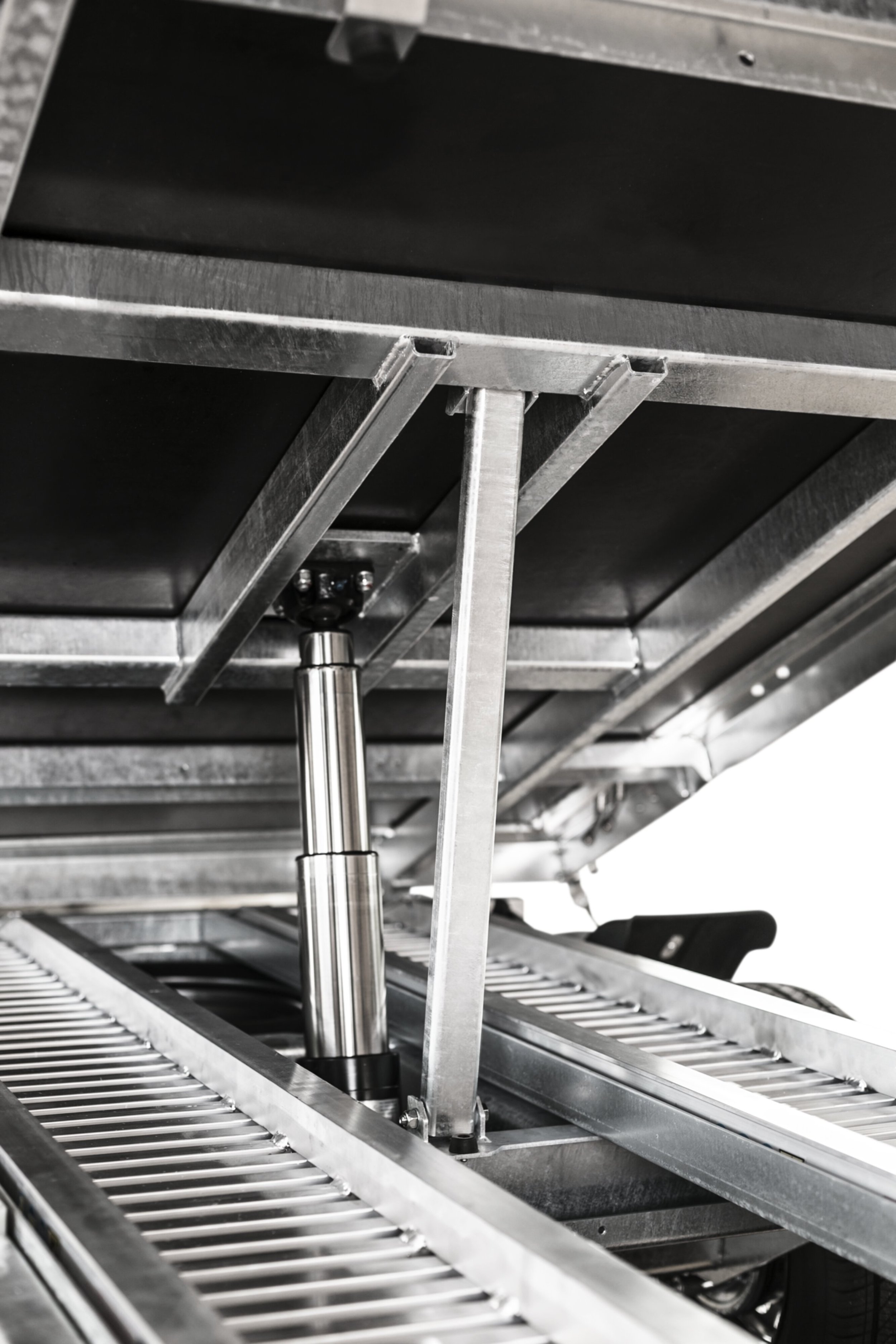

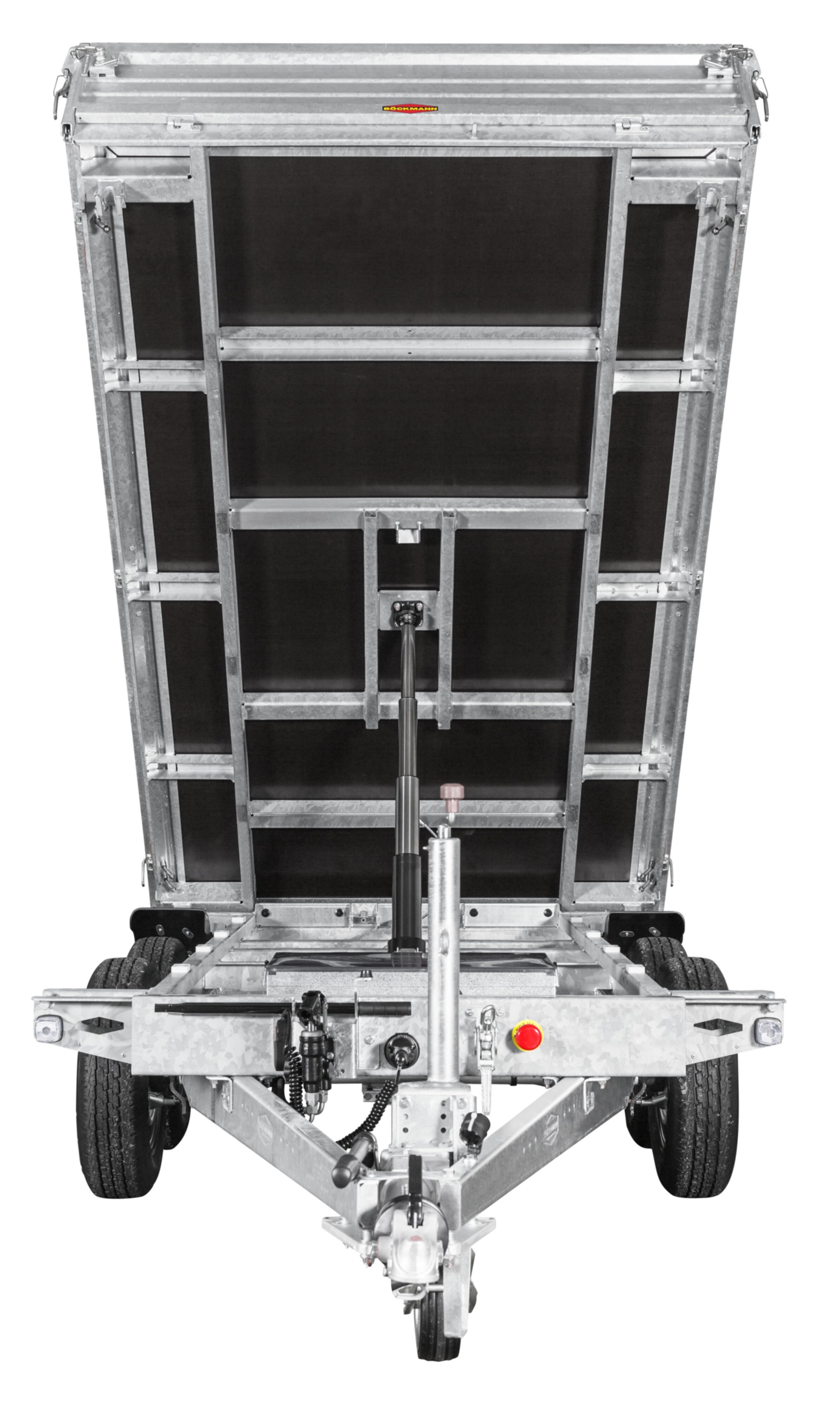

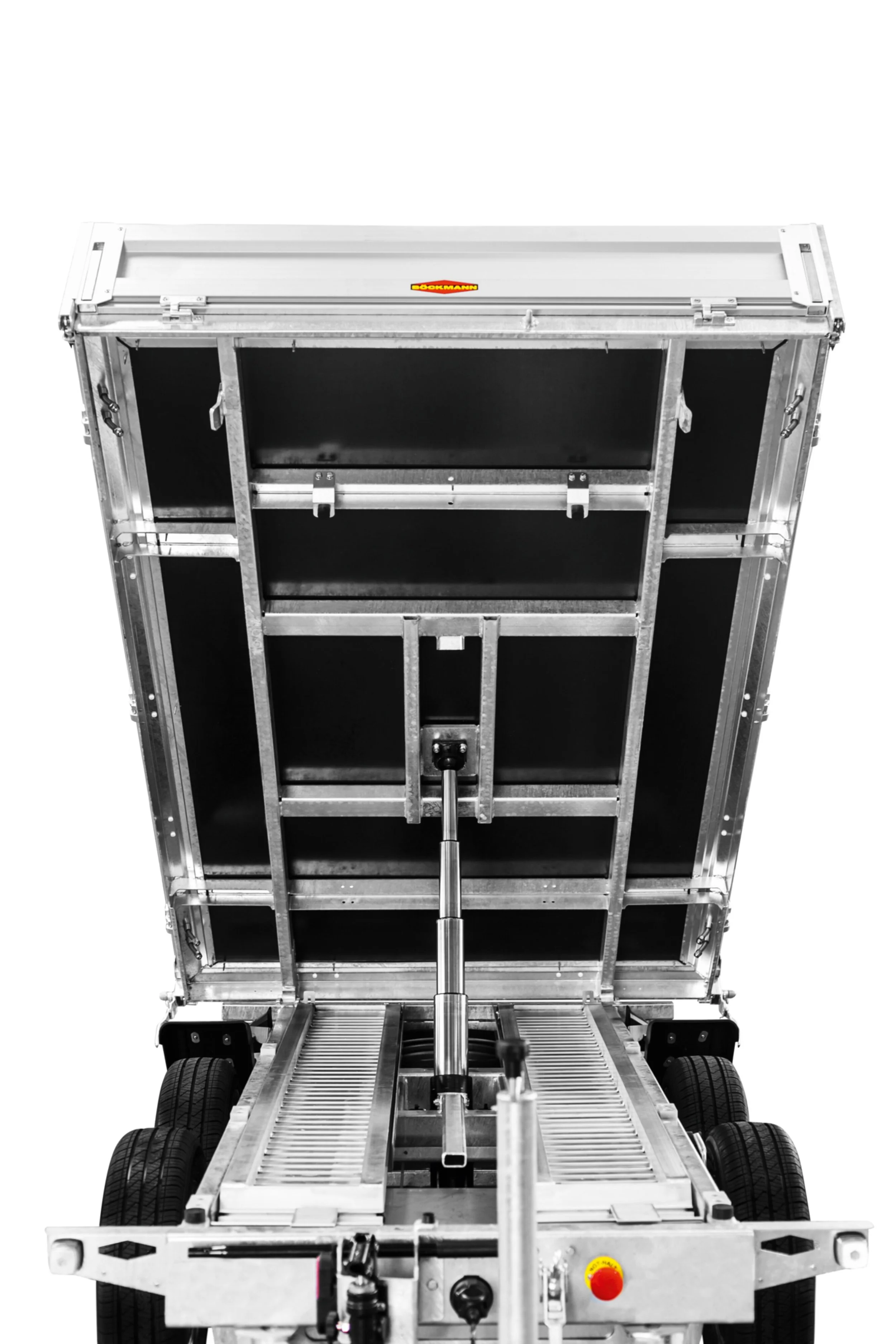

Large hydraulic telescopic cylinder (7 Ton rated)

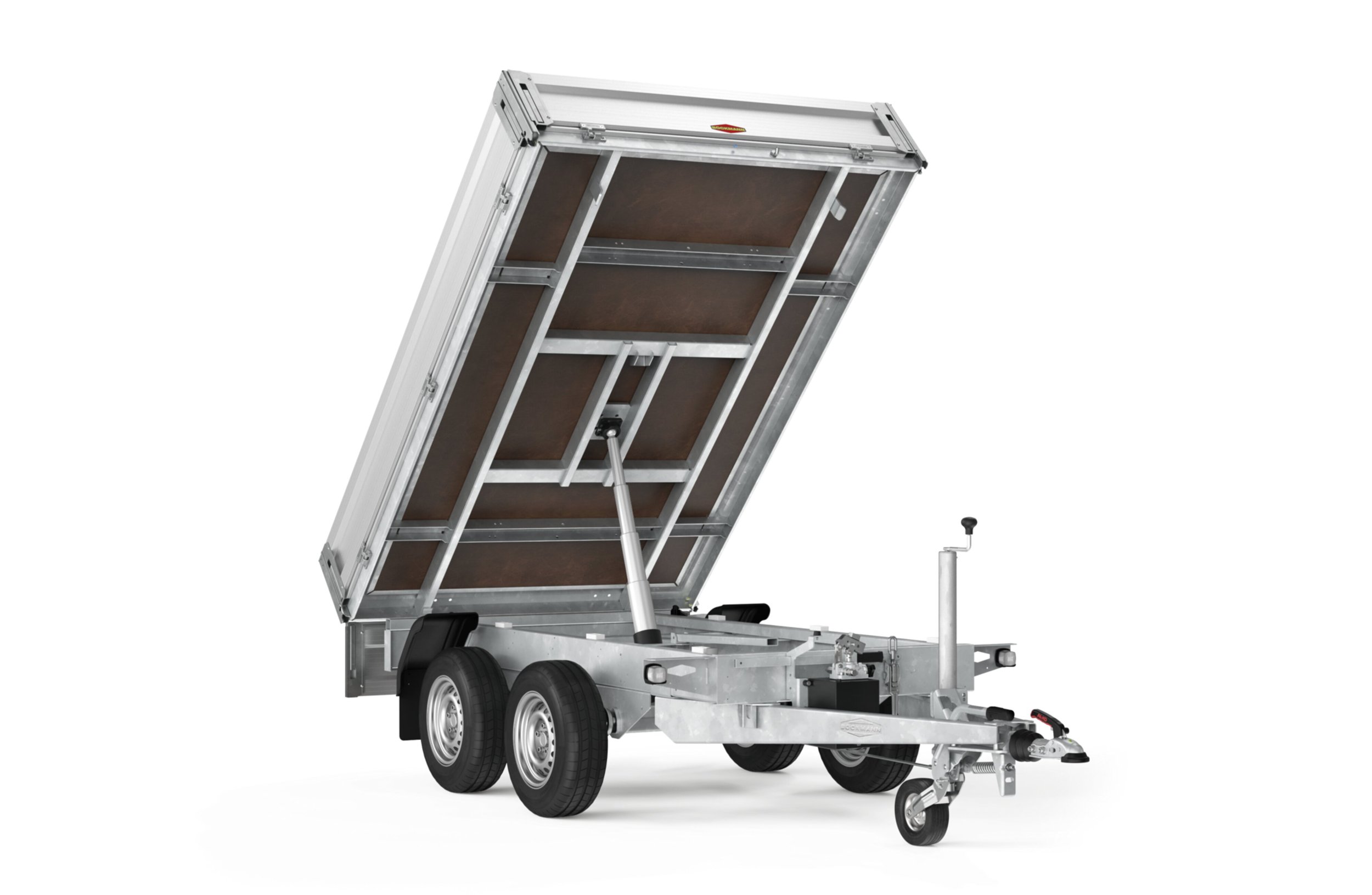

45-degree tipping angle

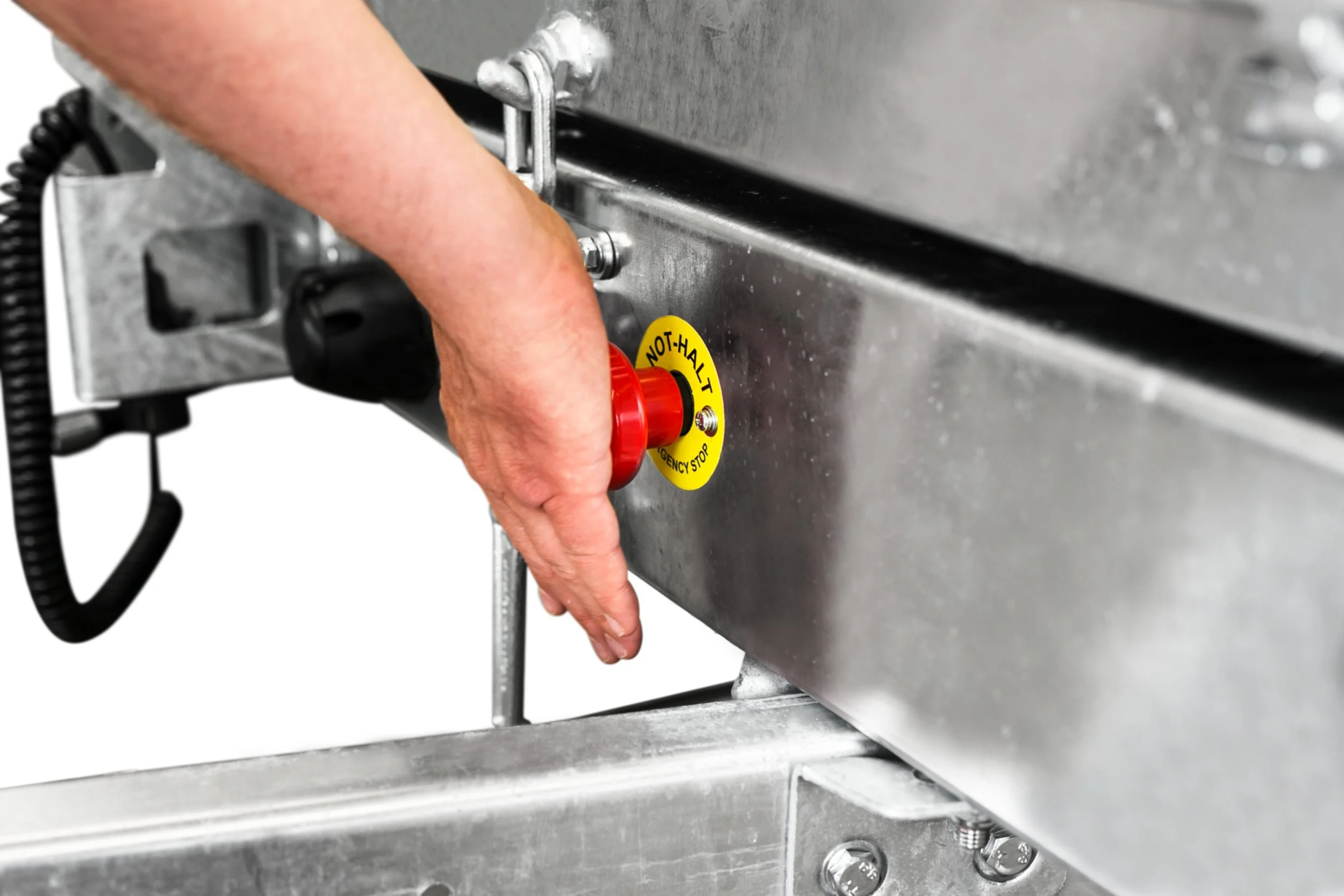

Emergency stop
Safety support for securing upper bridge
Charging cable (compatible with CTEK charger)
AL-CO mechanical / overrun brakes with flat handbrake lever
AL-CO solid cast lockable coupling (50mm)

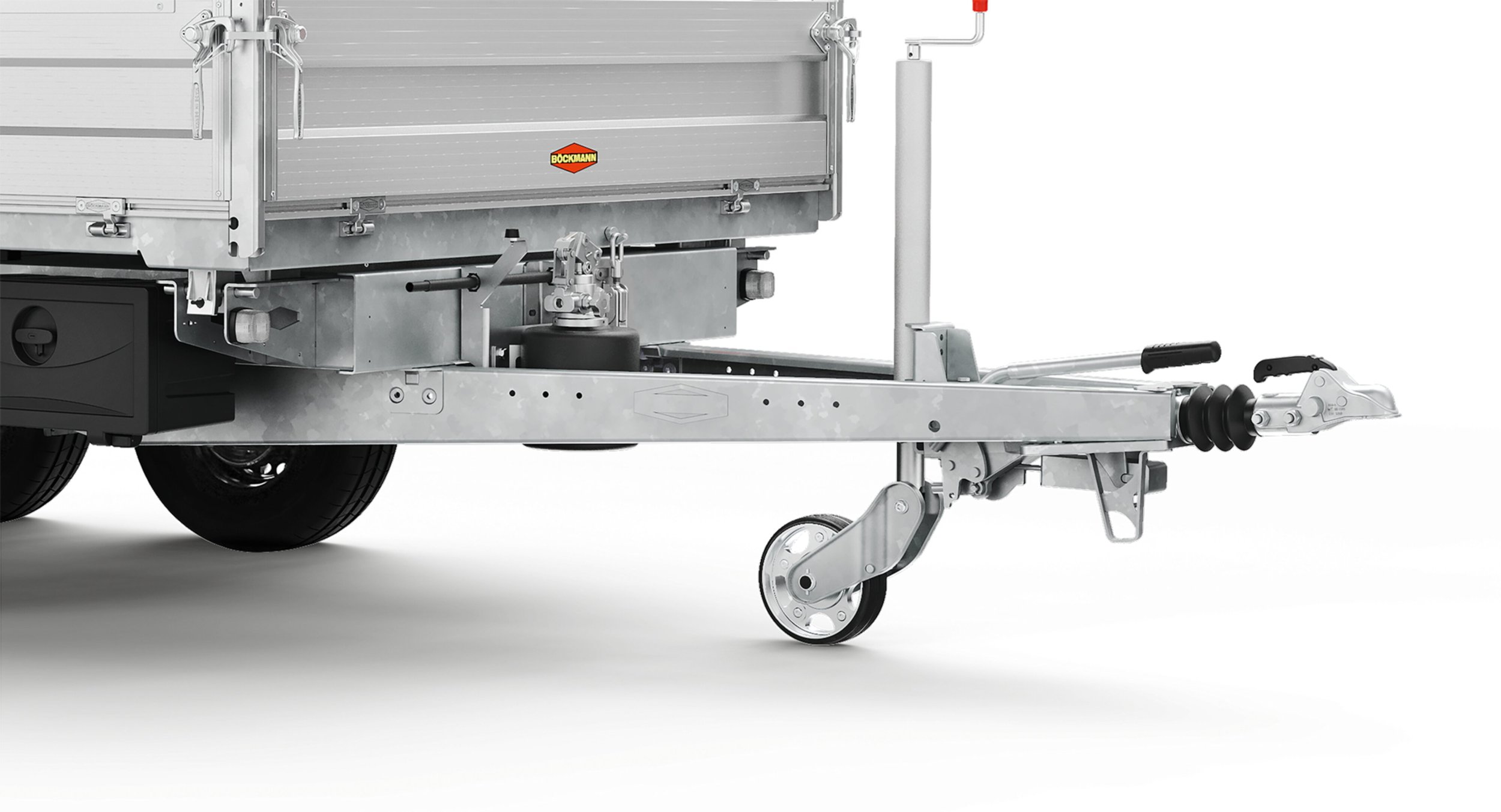

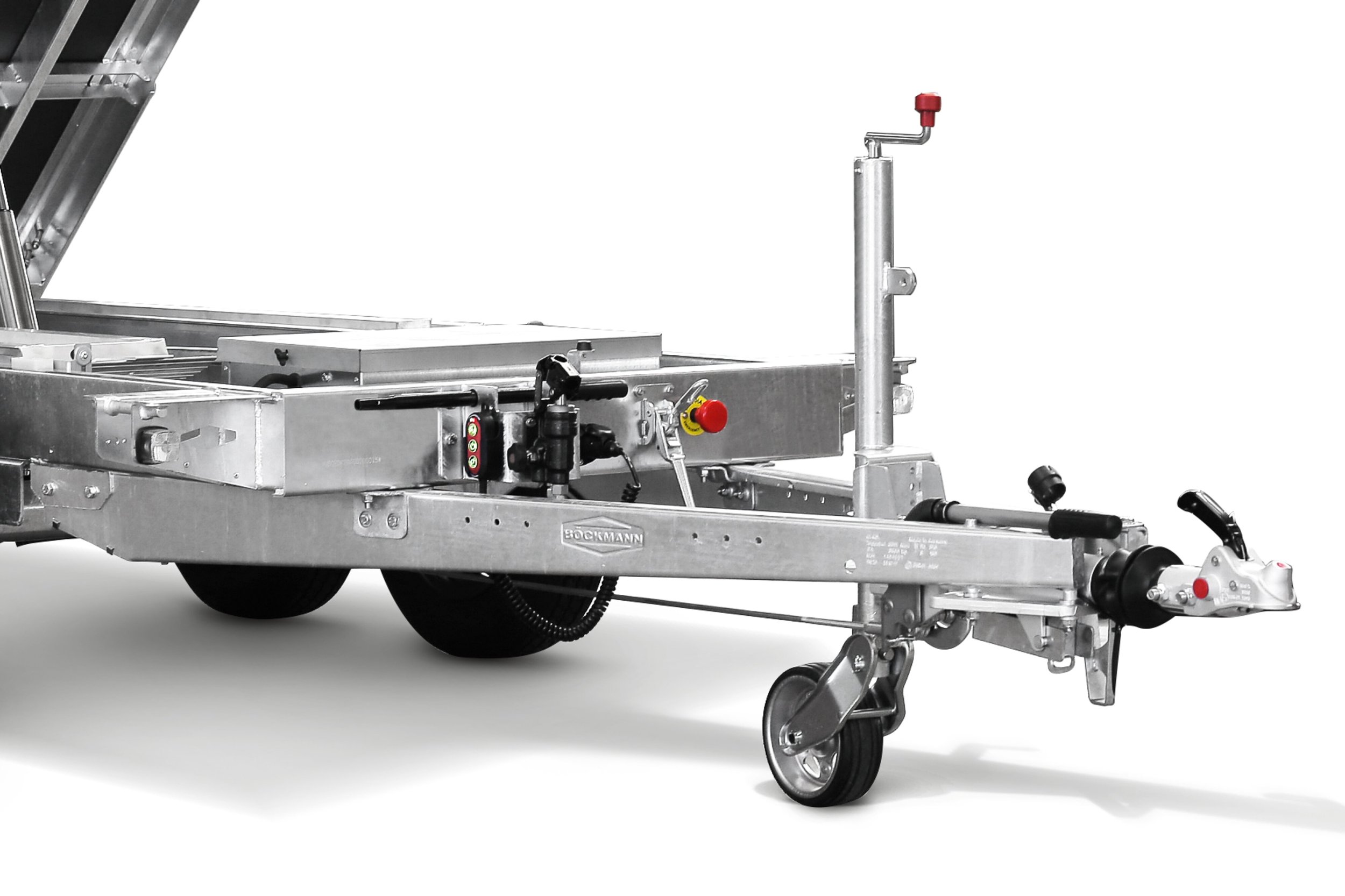

Heavy duty automatic jockey wheel
Galvanised steel sheet floor
Telescopic crank drop legs

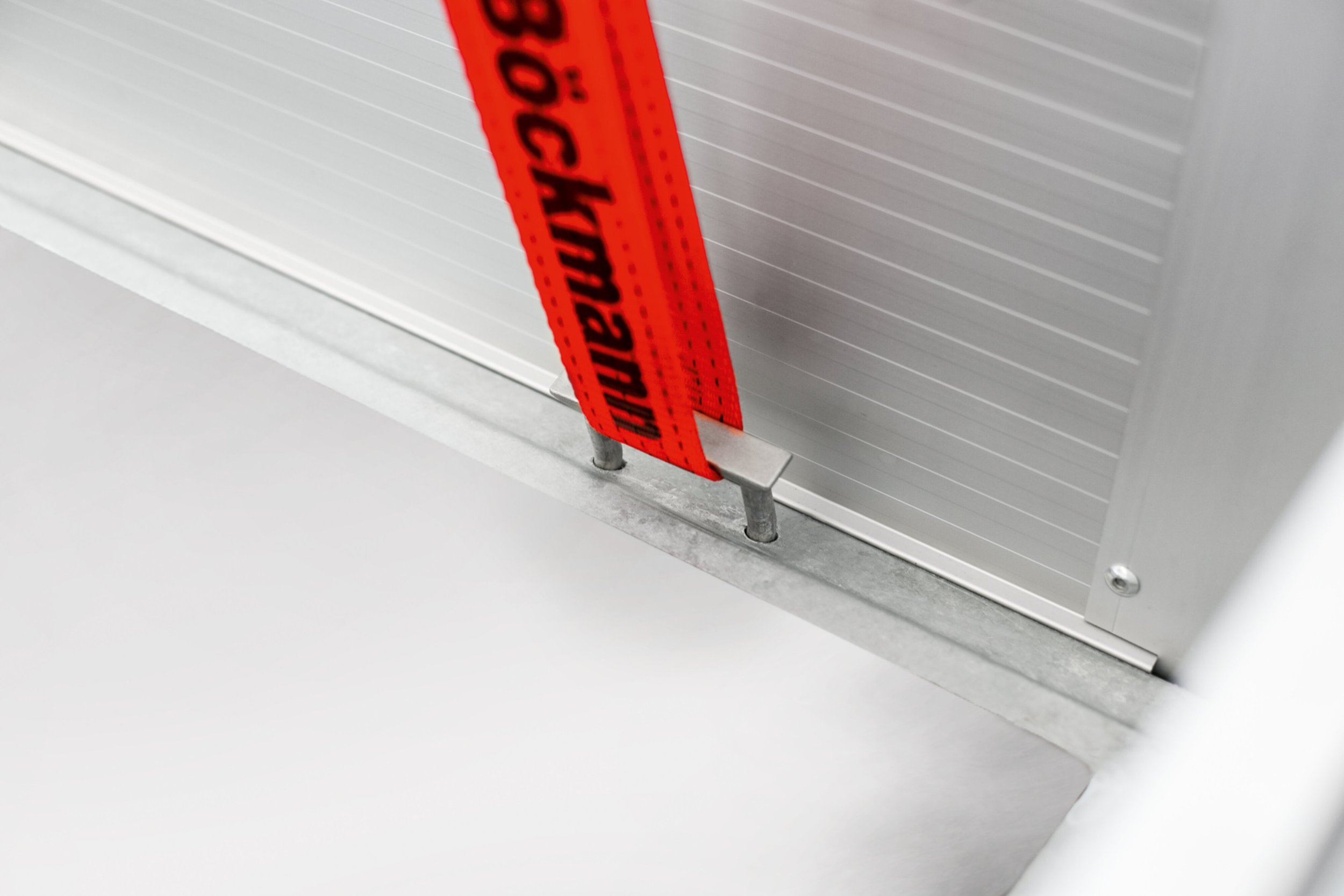

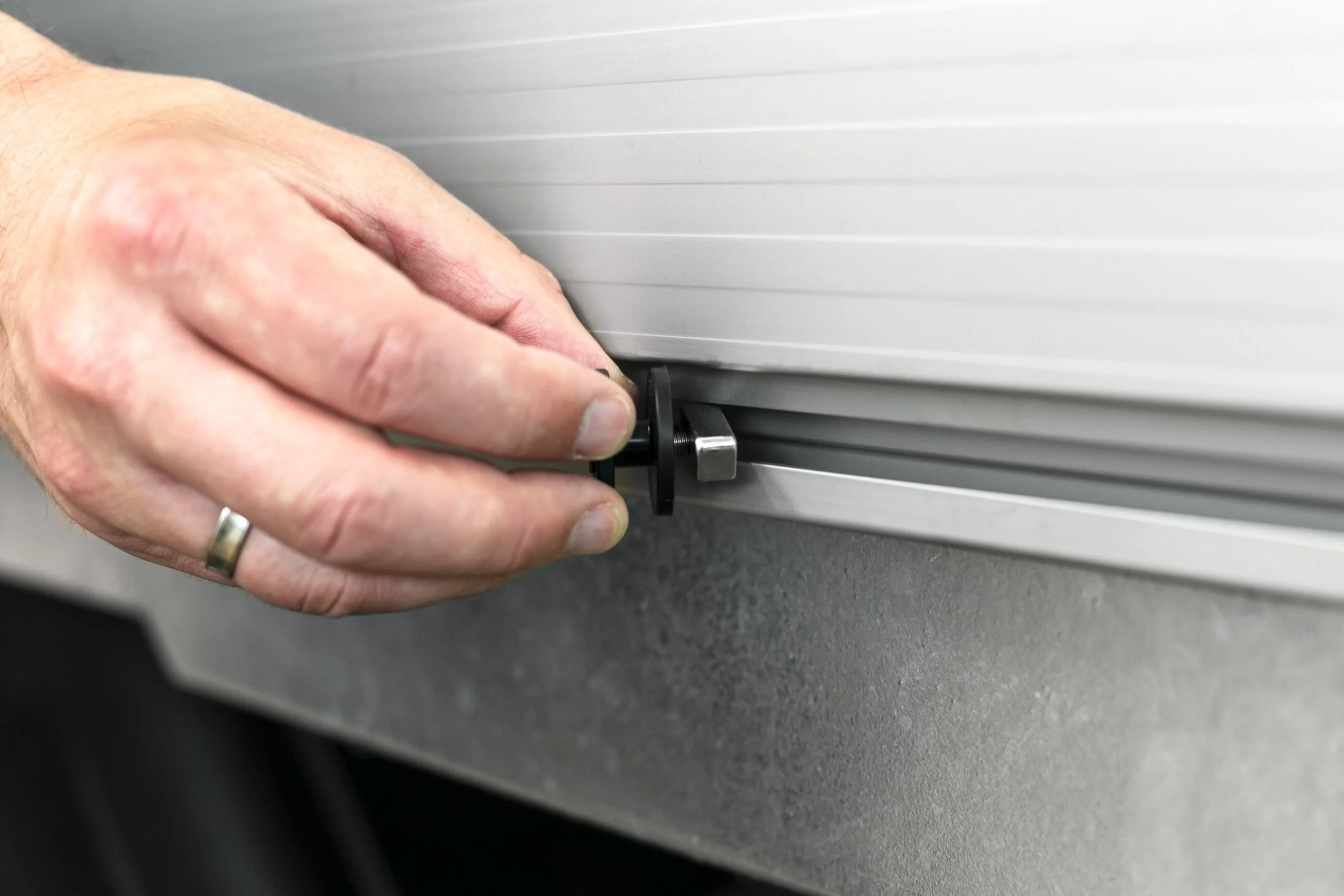

4 recessed, rattle-free lashing shackles with spring (max. 500daN) (provision for more)
Options…

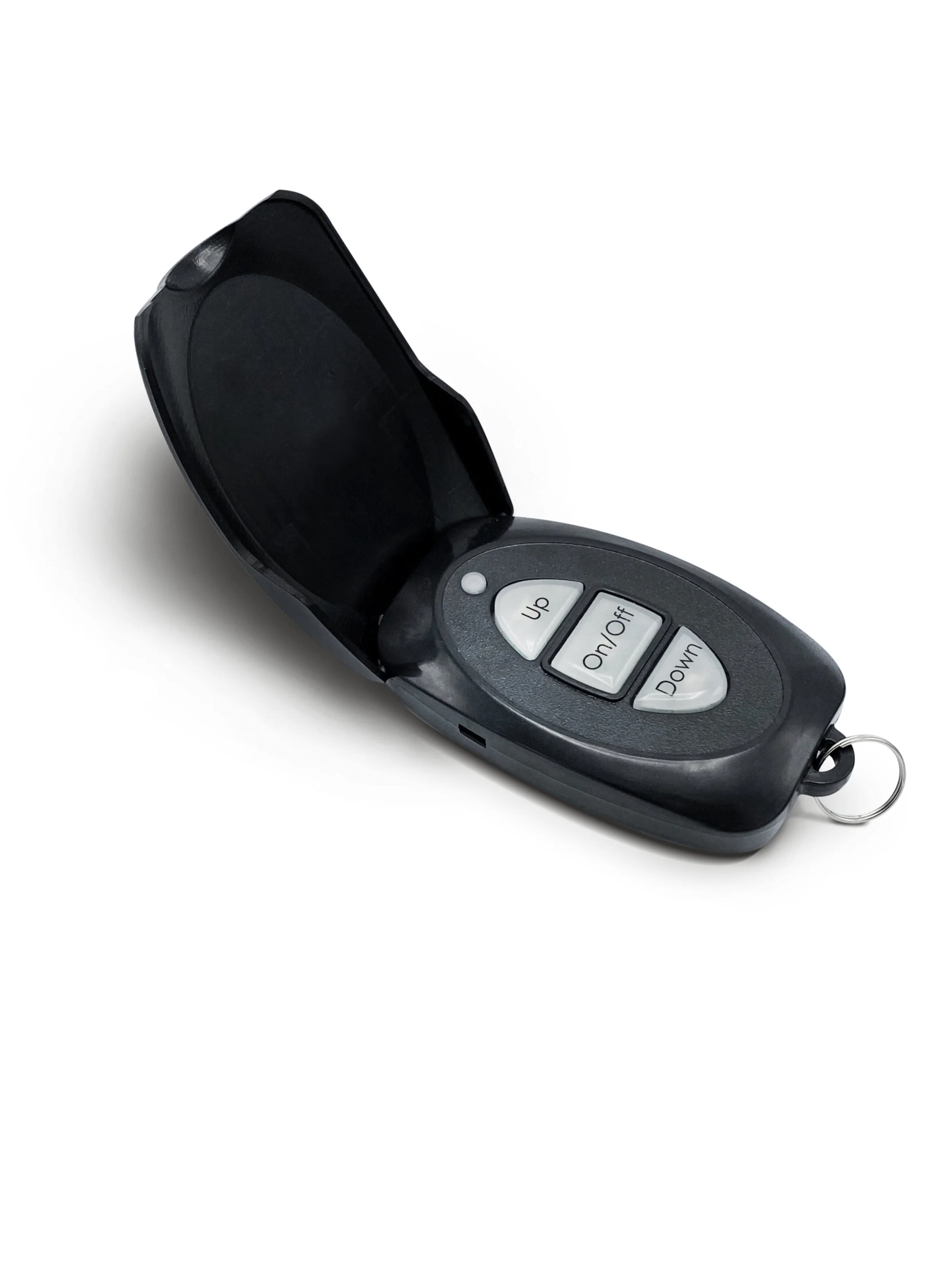

Wireless remote control (35m range) ($625+GST)
Wheel shock absorbers ($435+GST)

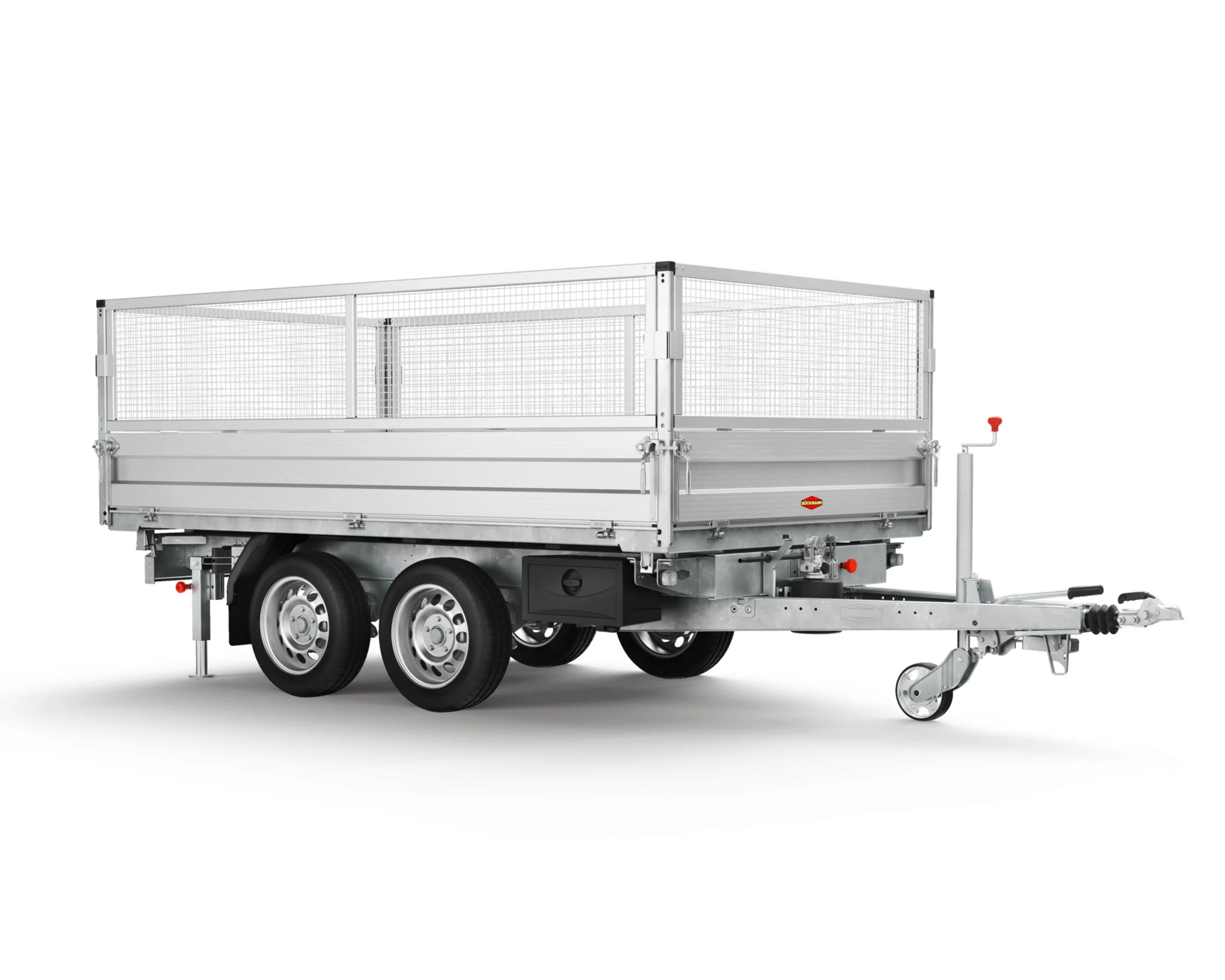

Wire mesh cage (1,000mm) ($2,650+GST)
Ladder rack ($260+GST)

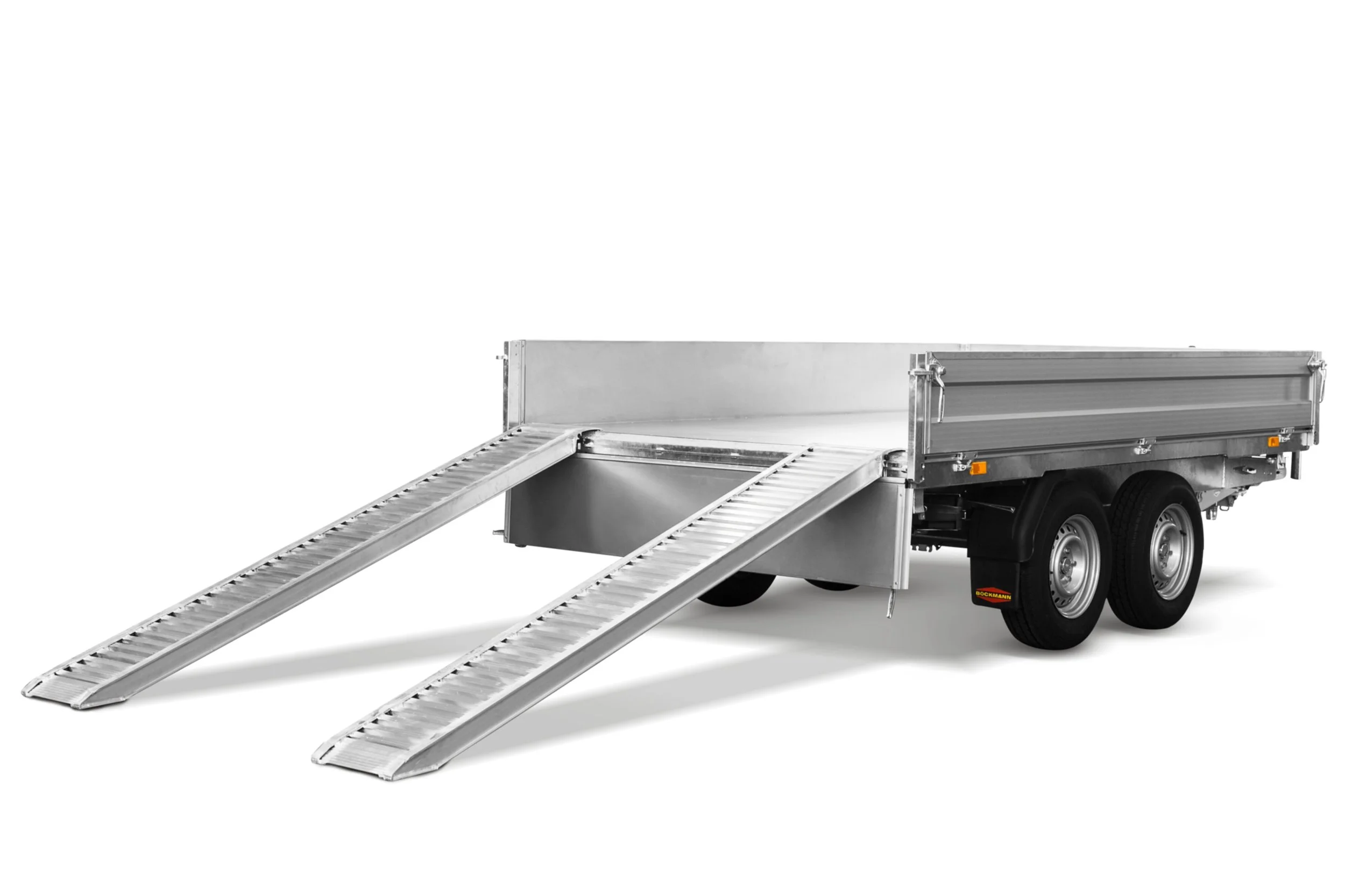

Aluminium loading ramps (2,700kg per pair) with safety tongue (stowed underneath deck) ($1,200+GST)
Spare wheel ($295+GST)
Lockable storage box ($295+GST)
PVC tarpaulin with raised centre bar ($550+GST)
Container net including 26 flexible net hooks ($295+GST)

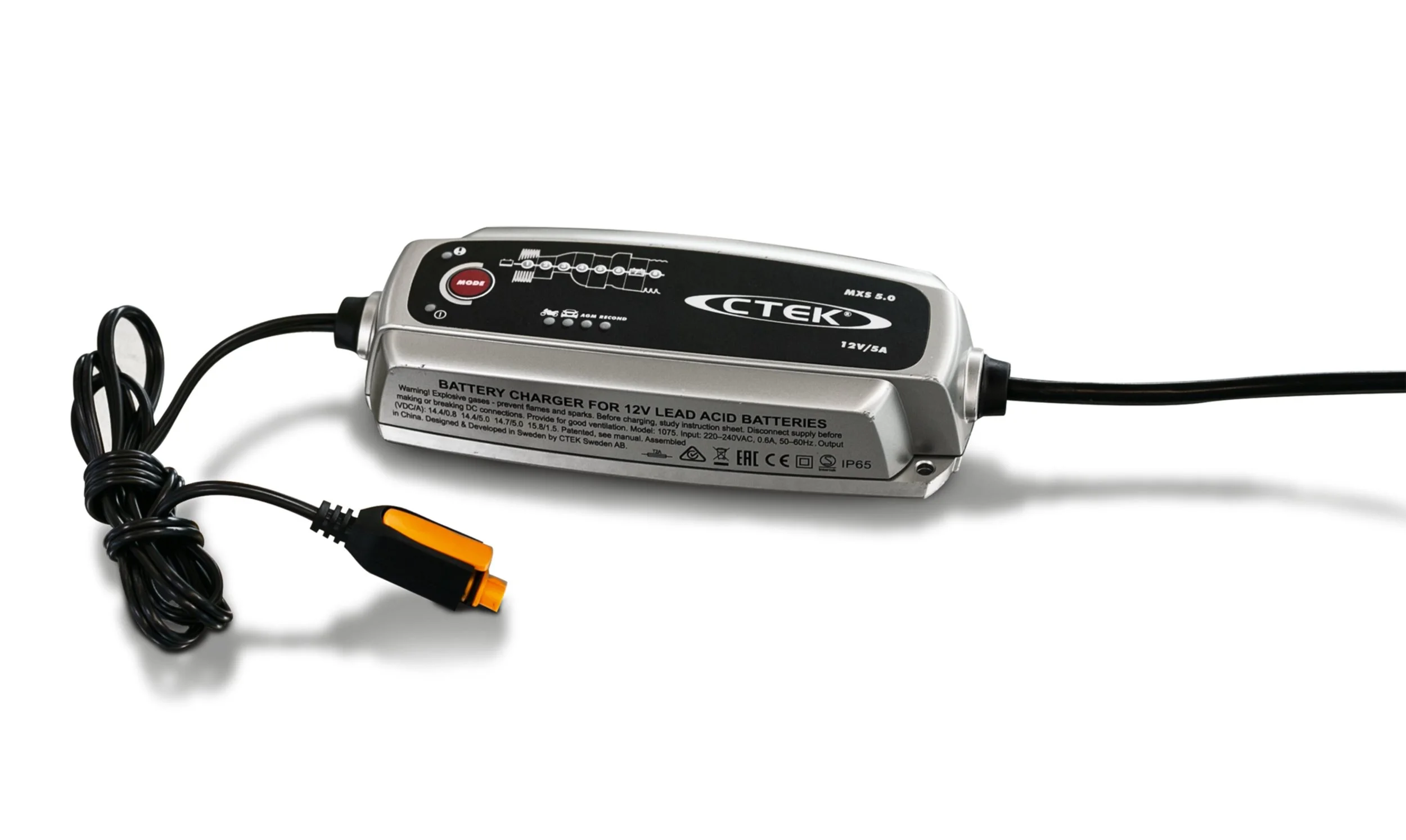

CTEK charger
Brochure download at http://www.boeckmann.com/en/downloads-infomaterial
